M38063M6-XXXFP

Features:

•Basic machine-language instructions .................................................... 71
•Memory size
ROM ................................................................................ 12 K to 48 K bytes
RAM ................................................................................. 384 to 1024 bytes
•Programmable input/output ports .......................................................... 72
•Interrupts ............................................................... 16 sources, 16 vectors
•Timers ............................................................................................ 8 bit 5 4
•Serial I/O1 ....................................... 8-bit 5 1 (UART or Clock-synchronized)
•Serial I/O2 .................................................... 8-bit 5 1 (Clock-synchronized)
•A-D converter .................................................................. 8-bit 5 8 channels
•D-A converter .................................................................. 8-bit 5 2 channels
•Clock generating circuit ....................................... Internal feedback resistor
(connect to external ceramic resonator or quartz-crystal)
•Memory expansion possible


Application

Office automation, VCRs, tuners, musical instruments, cameras, air conditioners, etc.

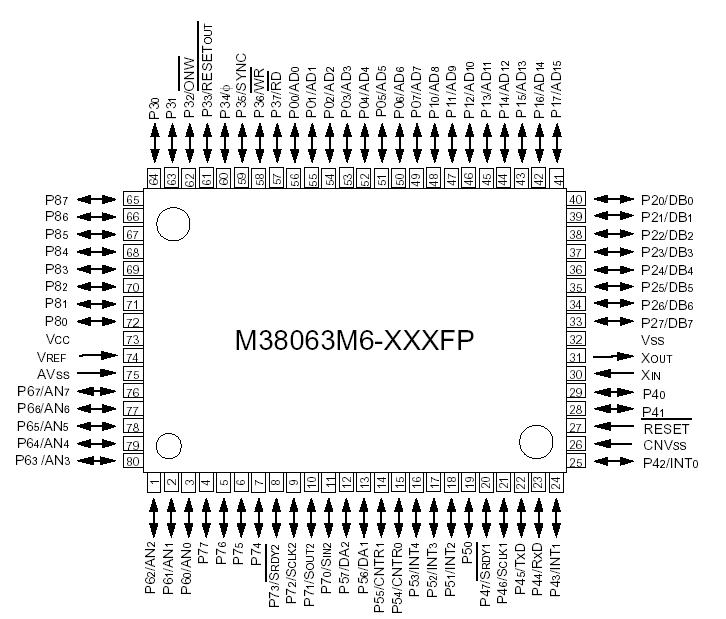

Pinout




Specifications

Symbol	Parameter	Conditions	Ratings	Unit
VCC	Power source voltage	All voltages are based on VSS. Output transistors are cut off.	0.3 to 7.0	V
VI	Input voltage P00P07, P10P17, P20P27, P30P37, P40P47, P50P57, P60P67, P70P77, P80P87, VREF		0.3 to VCC +0.3	V
VI	Input voltage RESET, XIN		0.3 to VCC +0.3	V
VI	Input voltage CNVSS		0.3 to 13	V
VO	Output voltage P00P07, P10P17, P20P27, P30P37, P40P47, P50P57, P60P67, P70P77, P80P87, XOUT		0.3 to VCC +0.3	V
Pd	Power dissipation	Ta = 25 °C	500	mW
Topr	Operating temperature		20 to 85	°C
Tstg	Storage temperature		40 to 125	°C

Description

The 3806 group is 8-bit microcomputer based on the 740 family core technology.

The 3806 group is designed for controlling systems that require analog signal processing and include two serial I/O functions, A-D converters, and D-A converters.

The various microcomputers in the 3806 group include variations of internal memory size and packaging. For details, refer to the section on part numbering.

For details on availability of microcomputers in the 3806 group, refer to the section on group expansion.
