Features:

<Microcomputer mode>
• Number of basic machine instructions .................................... 203
• Memory
[M37920FCCGP, M37920FCCHP]
Flash memory (User ROM area) ................................. 120 Kbytes
RAM .............................................................................4096 bytes
[M37920FGCGP, M37920FGCHP]
Flash memory (User ROM area) ................................. 248 Kbytes
RAM .............................................................................6144 bytes
[All of the above computers]
Flash memory (Boot ROM area) ................................... 16 Kbytes
• Instruction execution time
The fastest instruction at 20 MHz frequency ........................ 50 ns
• Single power supply .................................................... 5 V ± 0.5 V
• Interrupts ........... 6 external sources, 20 internal sources, 7 levels
• Multi-functional 16-bit timer ................................................... 5 + 3
• Serial I/O (UART or Clock synchronous) ..................................... 2
• 10-bit A-D converter ............................................ 4-channel inputs
• DMA controller .............................................................. 4 channels
• DRAM controller
• Real-time output
.... 4 bits * 2 channels, or 6 bits * 1 channel + 2 bits * 1 channel
• 12-bit watchdog timer
• Programmable input/output (ports P0P12) .............................. 85
<Flash memory mode>
• Power supply voltage .................................................. 5 V ± 0.5 V
• Programming/Erase voltage ........................................ 5 V ± 0.5 V
• Programming method ............ Programming in a unit of 256 bytes
• Erase method ............................................ Block erase or Total erase (Data protection per block is enabled.)
• Programming/Erase control by software command
• Maximum number of reprograms ............................................ 100

Pinout

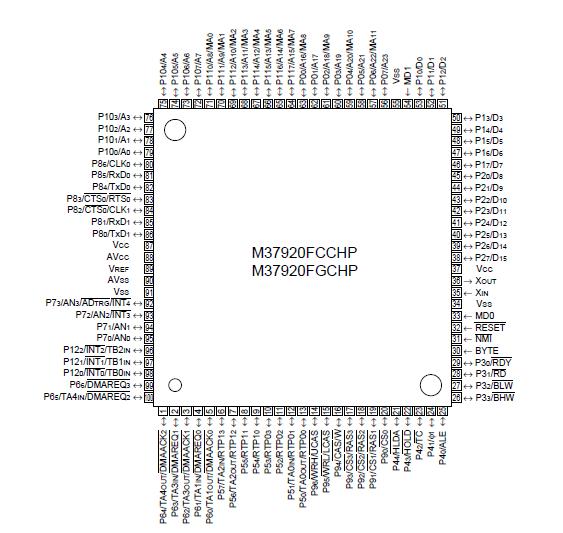

Connection Diagram

Specifications

Symbol	Paramete	Ratings	Unit
V_CC	Power source voltage	0.3 to 6.5	V
AV_CC	Analog power source voltage	0.3 to 6.5	V
V_I	Input voltage D0D7, D8/P20D15/P27, P30, P33, P40P44, P50P57,	0.3 to V_CC+0.3	V
	P60P66, P70P73, P80P86, P91P96, P100P107,
	P110P117, P120P122,
	V_REF, X_IN, RESET, BYTE, MD0, MD1, NMI
V_O	Output voltage D0D7, D8/P20D15/P27, P30, P40P44, P50P57,	0.3 to V_CC+0.3	V
	P60P66, P70P73, P80P86, P91P96, P100P107,
	P110P117, P120P122, XOUT
P_d	Power dissipation	300	mW
T_opr	Operating ambient temperature	20 to 85
T_stg	Storage temerature	40 to 150

Description

7900 Series are single-chip microcomputers designed with high-performance CMOS silicon gate technology, including the internal flash memory. These are housed in 100-pin plastic molded QFP. These microcomputers support the 7900 Series instruction set, which are enhanced and expanded instruction set and are upper-compatible with the 7700/7751 Series instruction set.

The CPU of 7900 Series is a 16-bit parallel processor that can also be switched to perform 8-bit parallel processing. Also, the bus interface unit of these microcomputers enhances the memory access efficiency to execute instructions fast. These microcomputers include the 4-channel DMA controller and the DRAM controller. Therefore, 7900 Series are suitable for office, business, and industrial equipment controller that require fast processing of large data.

For the internal flash memory, single-power-supply programming and erasure, using a PROM programmer or the control by the central processing unit (CPU), is supported. Also, each of 7900 Series has the memory area dedicated for storing a certain software which controls programming and erasure (reprogramming control software). Therefore, on 7900 Series, the program can easily be changed even after they are mounted on the board.
