Product Details

Description



Features:

<Microcomputer mode>
• Number of basic machine instructions .................................... 203
• Memory
   Flash memory (User ROM area) ................................... 60 Kbytes
   RAM ............................................................................. 3072 bytes
   Flash memory (Boot ROM area) ..................................... 8 Kbytes
• Instruction execution time
   The fastest instruction at 20 MHz frequency ........................ 50 ns
• Single power supply .................................................... 5 V ± 0.5 V
• Interrupts ........... 5 external sources, 21 internal sources, 7 levels
• Multi-functional 16-bit timer ................................................. 10 + 3
   (Three-phase motor drive waveform or Pulse motor drive waveform output is available.)
• Serial I/O (UART or Clock synchronous) ..................................... 2
• 10-bit A-D converter ............................................ 5-channel inputs
• 8-bit D-A converter ............................................ 2-channel outputs
• 12-bit watchdog timer
• Programmable input/output (ports P1, P2, P5, P6, P7) ............. 30
<Flash memory mode>
• Power supply voltage .................................................. 5 V ± 0.5 V
• Programming/Erase voltage ........................................ 5 V ± 0.5 V
• Programming method .................... Programming in a unit of word
• Erase method ............................................ Block erase or Total erase
   M37906F8CFP, M37906F8CSP
         ............... 4 blocks (8 Kbytes × 2, 16 Kbytes × 1, 28 Kbytes × 1)
• Programming/Erase control by software command
• Maximum number of reprograms ............................................ 100


Application

• Control devices for office equipment such as copiers and facsimiles
• Control devices for industrial equipment such as communication and measuring instruments
• Control devices for equipment, requiring motor control, such as inverter air conditioners and general-
   purpose  inverters


Pinout

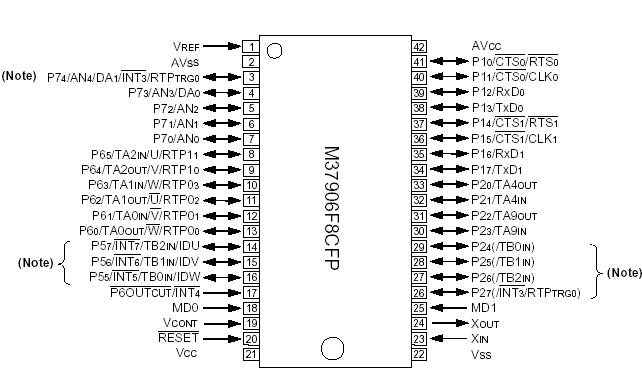

Connection Diagram


Specifications

Symbol
Parameter
Ratings
Unit
VCC
 Power source voltage
0.3 to 6.5
V
AVcc
 Analog power source voltage
0.3 to 6.5
V
VI
 Input voltage
  P10P17, P20P27, P55P57, P60P65, P70P74,
  P6OUTCUT,VCONT, VREF, XIN, RESET, BYTE, MD0, MD1
0.3 to Vcc + 0.3
V
VO
 Output voltage
   P10P17, P20P27, P55P57, P60P65, P70P74, XOUT
0.3 to VCC + 0.3
V
Pd
 Power dissipation
300
mW
Topr
 Operating temperature
20 to 85
Tstg
 Storage temperature range
40 to 150




Description

These are single-chip 16-bit microcomputers designed with high-performance CMOS silicon gate technology, including the internal flash memory and being packaged in 42-pin plastic molded SSOP or shrink plastic molded DIP. 7900 Series support the 7900 Series instruction set, which are enhanced and expanded instruction set and are upper-compatible with the 7700/7751 Series instruction set.

The CPU of 7900 Series is a 16-bit parallel processor that can also be switched to perform 8-bit parallel processing. Also, the bus interface unit of these microcomputers enhances the memory access efficiency to execute instructions fast. Therefore, 7900 Series are suitable for office, business, and industrial equipment controller that require high-speed processing of large data. Also, they are suitable for motor-control equipment since each of them includes the motor control circuit.

For the internal flash memory, single-power-supply programming and erasure, using a PROM programmer or the control by the central processing unit (CPU), is supported. Also, each of 7900 Series has the memory area dedicated for storing a certain software which controls programming and erasure (reprogramming control software). Therefore, on 7900 Series, the program can easily be changed even after they are mounted on the board.
