Features: • Number of basic machine instructions ................................................................ 109
(103 basic instructions of 7700 Family + 6 special instructions)
• Memory size ROM .................................................................................... 60 Kbytes
RAM............................................................................................................ 2048 bytes
• Instruction execution time
The fastest instruction at 40 MHz frequency .................................................... 100 ns
• Single power supply ................................................................................. 5V ±10 %
• Low power dissipation (at 40 MHz frequency) ...................................125 mW (Typ.)
• Interrupts ..................................................................................... 21 types, 7 levels
• Multiple-function 16-bit timer ............................................................................. 5+3
(three-phase motor drive waveform or pulse motor control waveform output)
• Serial I/O (UART or clock synchronous) ................................................................... 2
• 10-bit A-D converter ....................................................................... 8-channel inputs
• 8-bit D-A converter ...................................................................... 2-channel outputs
• 12-bit watchdog timer
• Programmable input/output
(ports P0-P11) ....................................................................................................... 87
• Small package [M37754M8C-XXXHP]
................................................................. 100-pin fine pitch QFP (read pitch : 0.5 mm)ApplicationControl devices for personal computer peripheral equipment such as CD-ROM drives, hard disk drives, high density FDD, printers Control devices for office equipment such as copiers and facsimiles Control devices for industrial equipment such as communication and measuring instruments Control devices for equipment required for motor control such as inverter air conditioner and general purpose inverter

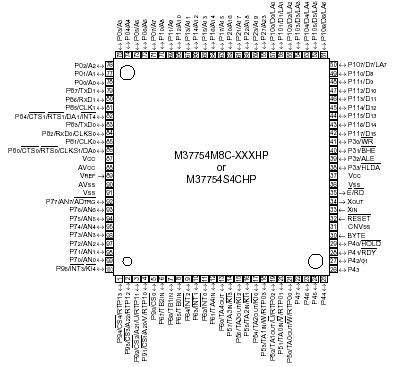

Pinout
Specifications
| Symbol |
Parameter |
Ratings |
Unit |
| VCC |
Power source voltage |
0.3 to 7 |
V |
| AVCC |
Analog power source voltage |
0.3 to 7 |
V |
| VI |
Input voltage RESET, CNVSS, BYTE |
0.3 to 12 |
V |
| VI |
Input voltage P00P07, P10P17, P20P23, P27, P30P33, P40P47,
P50P57, P60P67, P70P77, P80P87, P90P95,
P100P107, P110P117, VREF, XIN |
0.3 to VCC+0.3 |
V |
| VO |
Output voltage P00P07, P10P17, P20P23, P27, P30P33, P40P47,
P50P57, P60P67, P70P77, P80P87, P90P95,
P100P107, P110P117, XOUT, E |
0.3 to VCC+0.3 |
V |
| Pd |
Power dissipation |
300 |
mW |
| Topr |
Operating temperature |
20 to 85 |
|
| Tstg |
Storage temerature |
40 to 150 |
|
DescriptionThe M37754M8C-XXXGP is a single-chip microcomputer designed with high-performance CMOS silicon gate technology. This is housed in a 100-pin plastic molded QFP.
M37754M8C-XXXGP has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can also be switched to perform 8-bit parallel processing, and the bus interface unit enhances the memory access efficiency to execute instructions fast.
In addition to the 7700 Family basic instructions, the M37754M8CXXXGP has 6 special instructions which contain instructions for signed multiplication/division; these added instructions improve the servo arithmetic performance to control hard disk drives and so on. This microcomputer also include the ROM, RAM, multiple-function timers, motor control function, serial I/O, A-D converter, D-A converter, and so on.
The differences between M37754M8C-XXXGP, M37754M8C-XXXHP, M37754S4CGP and M37754S4CHP are listed in the table on the next page: the internal ROM, usable processor mode, and package. Therefore, the following descriptions will be for the M37754M8CXXXGP unless otherwise noted.
M37754M8C-XXXGP Data Sheet
