M37753S4CFP

• Number of basic machine instructions .................................... 109 (103 basic instructions of 7700 Family + 6 special instructions)
• Memory size ROM ................................................ 60 Kbytes RAM................................................ 2048 bytes
• Instruction execution time The fastest instruction at 40 MHz frequency ...................... 100 ns
• Single power supply .......................................................5V ±10 %
• Low power dissipation (at 40 MHz frequency) ....... 125 mW (Typ.)
• Interrupts ............................................................ 21 types, 7 levels
• Multiple-function 16-bit timer ................................................... 5+3 (three-phase motor drive waveform or pulse motor control waveform output)
• Serial I/O (UART or clock synchronous) ...................................... 2
• 10-bit A-D converter ............................................ 8-channel inputs
• 8-bit D-A converter ............................................ 2-channel outputs
• 12-bit watchdog timer
• Programmable input/output (ports P0-P8) .......................................................................... 68

Control devices for personal computer peripheral equipment such as CD-ROM drives, hard disk drives, high density FDD, printers Control devices for office equipment such as copiers and facsimiles Control devices for industrial equipment such as communication and measuring instruments

Control devices for equipment required for motor control such as inverter air conditioner and general purpose inverter

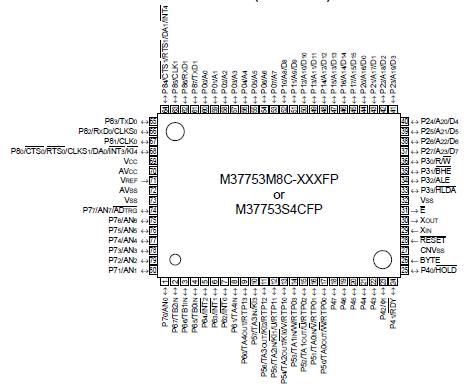

The M37753M8C-XXXFP is a single-chip microcomputer designed with high-performance CMOS silicon gate technology. This is housed in a 80-pin plastic molded QFP.

M37753M8C-XXXFP, M37753M8C-XXXHP, M37753S4CFP and M37753S4CHP have a CPU and a bus interface unit. The CPU is a 16-bit parallel processor, M37753M8C-XXXFP, M37753M8C-XXXHP, M37753S4CFP and M37753S4CHP can also be switched to perform 8-bit parallel processing, and the bus interface unit enhances the memory access efficiency to execute instructions fast.

In addition to the 7700 Family basic instructions, the M37753M8CXXXFP has 6 special instructions which contain instructions for signed multiplication/division; these added instructions improve the servo arithmetic performance to control hard disk drives and so on.

M37753M8C-XXXFP, M37753M8C-XXXHP, M37753S4CFP and M37753S4CHP include the ROM, RAM, multiple-function timers, motor control function, serial I/O, A-D converter, D-A converter, and so on.

The differences between M37753M8C-XXXFP, M37753M8C-XXXHP, M37753S4CFP and M37753S4CHP are listed in the table on the next page: the internal ROM, usable processor mode, and package. Therefore, the following descriptions will be for the M37753M8CXXXFP unless otherwise noted.
