Product Details

Description



Features:

.Number of basic instructions .................................................. 103
.Memory size ROM ...............................................124 Kbytes
                      RAM................................................ 3968 bytes
.Instruction execution time
.The fastest instruction at 25 MHz frequency ...................... 160 ns
.Single power supply ...................................................... 5 V ± 10%
.Low power dissipation (at 25 MHz frequency)
    ............................................47.5 mW (Typ.)
.Interrupts ............................................................ 19 types, 7 levels
.Multiple-function 16-bit timer ................................................. 5 + 3
.Serial I/O (UART or clock synchronous) ..................................... 3
.10-bit A-D converter ............................................ 8-channel inputs
.12-bit watchdog timer
.Programmable input/output, output
.(ports P0, P1, P2, P3, P4, P5, P6, P7, P8, P9, P10)..........................84
.Clock generating circuit ........................................ 2 circuits built-in
.Package .........................................................................100-pin QFP


Application

Control devices for general commercial equipment such as office automation, office equipment, and others. Control devices for general industrial equipment such as communication equipment, and others.




Pinout

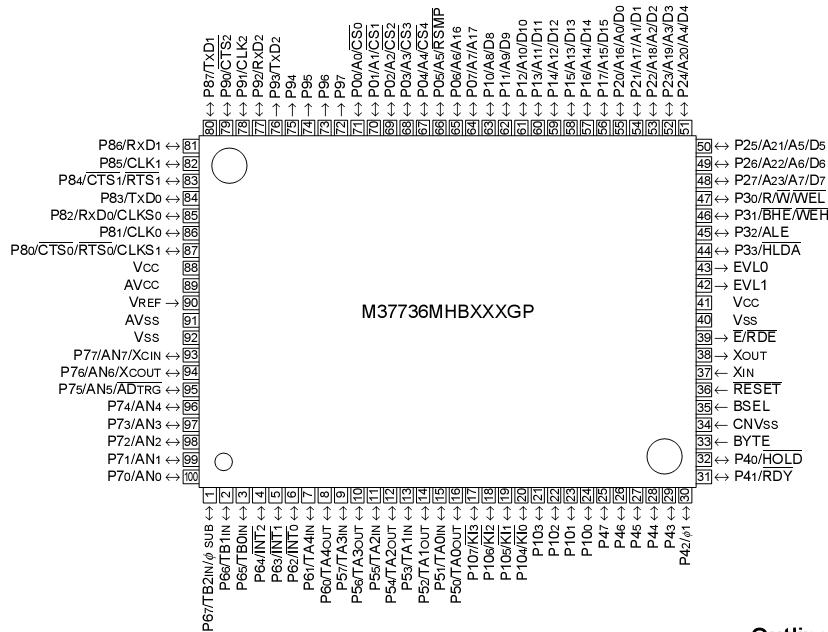

Connection Diagram


Specifications

Symbol

Parameter

Conditions

Ratings

Units

Vcc

Power source voltage



0.3 to +7

V

AVcc

Analog power source voltage



0.3 to +7

V

VI

Input voltage RESET, CNVss, BYTE



0.3 to +12

V

VI

Input voltage P00 P07, P10 P17, P20P27,
P30 P33, P40 P47, P50 P57,
P60 P67, P70 P77, P80 P87,
P90 P92, P100 P107,
VREF, XIN, BSEL



0.3 to Vcc + 0.3

V

VO

Output voltage P00 P07, P10 P17, P20 P27,P30 P33, P40 P47, P50 P57,
P60 P67, P70 P77, P80 P87,
_P90 P97, P100 P107, XOUT, E



0.3 to Vcc + 0.3

V

Pd

Power dissipation

Ta = 25 °C

300

mW

Topr

Operating temperature



20 to +85

°C

Tstg

Storage temperature



40 to +150

°C




Description

The M37736MHBXXXGP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37736MHBXXXGP also includes a 32 kHz oscillation circuit, in addition to the ROM, RAM, multiple-function timers, serial I/O, A-D converter, and others.

In the M37736MHBXXXGP, as the multiplex method of the external bus, either of 2 types can be selected.
