Features:

·Number of basic instructions .................................................. 103
·Memory size ROM ................................................. 32 KbytesRAM ................................................ 2048 bytes
·Instruction execution time  The fastest instruction at 25 MHz frequency ...................... 160 ns
·Single power supply ...................................................... 5 V ± 10%
·Low power dissipation (at 25 MHz frequency)............................................47.5 mW (Typ.)
·Interrupts ............................................................ 19 types, 7 levels
·Multiple-function 16-bit timer ................................................. 5 + 3
·Serial I/O (UART or clock synchronous) ..................................... 3
·10-bit A-D converter ............................................ 8-channel inputs
·12-bit watchdog timer
·Programmable input/output, outputports P0, P1, P2, P3, P4, P5, P6, P7, P8, P9, P10)..........................84
·Clock generating circuit ........................................ 2 circuits built-in
·Package .........................................................................100-pin QFP


Application

·Control devices for general commercial equipment such as officeautomation, office equipment, and others.
·Control devices for general industrial equipment such as communication equipment, and others.



Pinout

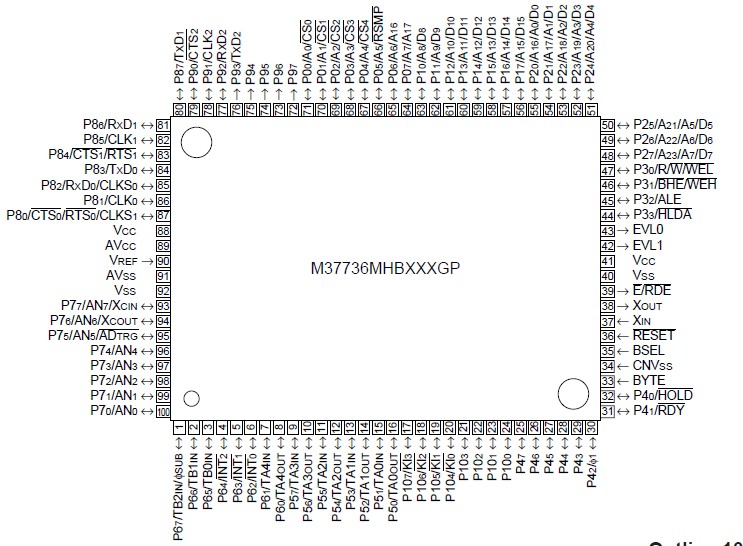

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc
 Power source voltage
0.3 to +7
V
AVcc
 Analog power source voltage
0.3 to +7
V
VI
 Input voltage RESET, CNVss, BYTE
0.3 to +12
V
VI
 Input voltage P00 P07, P10 P17, P20 P27,
P30 P33, P40 P47, P50 P57,
P60 P67, P70 P77, P80 P87,
VREF, XIN
0.3 to Vcc + 0.3
V
VO
 Output voltage P00 P07, P10 P17, P20 P27,
P30 P33, P40 P47, P50 P57,
P60 P67, P70 P77, P80 P87,
_
XOUT, E
0.3 to Vcc + 0.3
V
Pd
 Power dissipation
Ta = 25 °C
300
mW
Topr
 Operating temperature
20 to +85
°C
Tstg
 Storage temperature
40 to +150
°C



Description

The M37736M4BXXXGP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37736M4BXXXGP also includes a 32 kHz oscillation circuit, in addition to the ROM, RAM, multiple-function timers, serial I/O, A-D converter, and others.
