M37735S4BFP

Features: Number of basic instructions ............................................................. 103 Memory size RAM .............................................................................. 2048 bytes Instruction execution time The fastest instruction at 25 MHz frequency ..................

product image

M37735S4BFP Picture
See larger image
SeekIC No. : 004405025 Detail

M37735S4BFP: Features: Number of basic instructions ............................................................. 103 Memory size RAM ...............................................................................

M37735S4BFP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M37735S4BFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Number of basic instructions ............................................................. 103
Memory size RAM .............................................................................. 2048 bytes
Instruction execution time
    The fastest instruction at 25 MHz frequency ..................................... 160 ns
Single power supply ......................................................................... . 5 V ± 10%
Low power dissipation (at 25 MHz frequency).................................... 47.5 mW (Typ.)
Interrupts .......................................................................................... 19 types, 7 levels
Multiple-function 16-bit timer .............................................................. 5 + 3
Serial I/O (UART or clock synchronous).................................................3
10-bit A-D converter .............................................................................8-channel inputs
12-bit watchdog timer
Programmable input/output (ports P4, P5, P6, P7, P8) .........................37
Clock generating circuit ........................................................................ 2 circuits built-in


Application

Control devices for general commercial equipment such as office automation, office equipment, and so on.

Control devices for general industrial equipment such as communication equipment, and so on.




Pinout

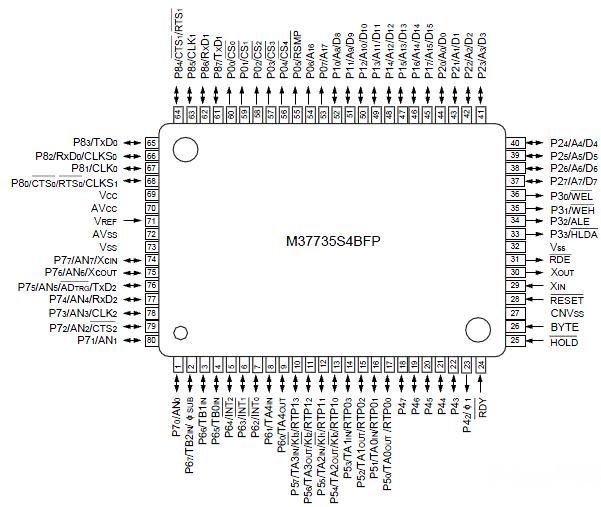

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Power source voltage
0.3 to 7.0
V
AVCC
 Analog power source voltage
0.3 to 7.0
V
VI
 Input voltage RESET, CNVss, BYTE
0.3 to +12
V
VI
 Input voltage P10/A8/D8 P17/A15/D15,               P20/A0/D0 P27/A7/D7,
              P43P47, P50P57, P60P67,               P70P77,P80 P87,
              VREF, XIN,HOLD, RDY
0.3 to VCC+0.3
V
VO

Output voltage  P00/CS0P07/A17,
                P10/A8/D8P17/A15/D15,
                P20/A0/D0P27/A7/D7,
                P30/WEL P33/HLDA ,P42/ 1,
                P43P47, P50P57, P60P67,                 P70P77, P80P87,XOUT, RDE


0.3 to VCC+0.3
V
Pd
 Power dissipation Ta = 25°C
300
mW
Topr
 Operating temperature
20 to 85
°C
Tstg
 Storage temperature
65 to 150
°C



Description

The M37735S4BFP is a microcomputer using the 7700 Family core. This microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37735S4BFP also includes a 32 kHz oscillation circuit, in addition to the RAM, multiple-function timers, serial I/O, A-D converter, and so on.
