Features:

`Number of basic instructions .................................................. 103
`Memory size ROM ................................................. 124 Kbytes
                       RAM ................................................ 3968 bytes
`Instruction execution time
     The fastest instruction at 12 MHz frequency ...................... 333 ns
`Single power supply ...................................................... 2.75.5 V
`Low power dissipation (At 3 V supply voltage, 12 MHz frequency)
                                          ........................................... 9 mW (Typ.)
`Interrupts ............................................................ 19 types, 7 levels
`Multiple-function 16-bit timer ................................................. 5 + 3
`Serial I/O (UART or clock synchronous) ...................................... 3
`10-bit A-D converter .............................................. 8-channel inputs
`12-bit watchdog timer
`Programmable input/output
     (ports P0, P1, P2, P3, P4, P5, P6, P7, P8) ............................... 68
`Clock generating circuit ........................................ 2 circuits built-in
`Small package ...................... 80-pin plastic molded fine-pitch QFP
                                                            (80P6D-A;0.5 mm lead pitch)


Application

Control devices for general commercial equipment such as office automation, office equipment, personal information equipment, and so on.

Control devices for general industrial equipment such as communication equipment, and so on.




Pinout

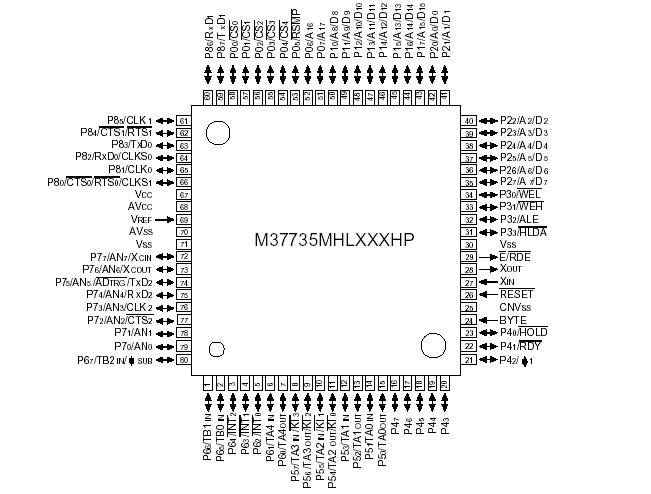

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Power source voltage
0.3 to +7
V
AVcc
 Analog power source voltage
0.3 to +7
V
VI
 Input voltage RESET, CNVss, BYTE
0.3 to +12
V
VI
 Input voltage
   P00 P07, P10 P17, P20 P27, P30 P33,
   P40 P47, P50 P57, P60 P67, P70 P77,
   P80 P87, VREF, XIN
0.3 to Vcc + 0.3
V
VO
 Output voltage
   P00 P07, P10 P17, P20 P27, P30 P33,
   P40 P47, P50 P57, P60 P67, P70 P77,
   P80 P87, XOUT,E
0.3 to VCC + 0.3
V
Pd
 Power dissipation
Ta = 25
200
mW
Topr
 Operating temperature
40 to +85
Tstg
 Storage temperature range
65 to +150




Description

The M37735MHLXXXHP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37735MHLXXXHP also includes a 32 kHz oscillation circuit, in addition to the ROM, RAM, multiple-function timers, serial I/O, A-D converter, and so on.

M37735MHLXXXHP's strong points are the low power dissipation, the low supply voltage and the small package.
