Features:

`lNumber of basic instructions .................................................. 103
`lMemory size PROM ............................................. 124 Kbytes
`RAM ................................................ 3968 bytes
`lInstruction execution time
   -The fastest instruction at 12 MHz frequency ...................... 333 ns
`lSingle power supply ...................................................... 2.75.5 V
`lLow power dissipation (At 3 V supply voltage, 12 MHz frequency)
                                           ............................................ 9 mW (Typ.)
`lInterrupts ............................................................ 19 types, 7 levels
`lMultiple-function 16-bit timer ................................................. 5 + 3
`lSerial I/O (UART or clock synchronous) ...................................... 3
`l10-bit A-D converter .............................................. 8-channel inputs
`lWatchdog timer
`lProgrammable input/output
   (ports P0, P1, P2, P3, P4, P5, P6, P7, P8) ............................... 68
`lClock generating circuit ........................................ 2 circuits built-in
`lSmall package ..................... 80-pin plastic molded fine-pitch QFP
                                                                          (0.5 mm lead pitch)

Application

Control devices for general commercial equipment such as office automation, office equipment, personal information equipment, and so on.

Control devices for general industrial equipment such as communication equipment, and so on.

Pinout

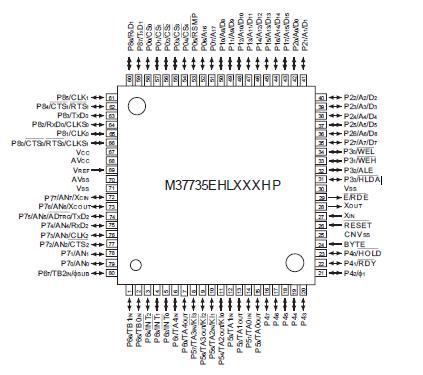

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
Vcc	Power source voltage		0.3 to +7	V
AVcc	Analog power source voltage		0.3 to +7	V
V_I	Input voltage RESET, CNVss, BYTE		0.3 to +12 (Note)	V
Pd	Input voltage P00 P07, P10 P17, P20 P27, P30 P33, P40 P47, P50 P57, P60 P67, P70 P77, P80 P87, VREF, XIN		200	mW
Topr	Output voltage P00 P07, P10 P17, P20 P27, P30 P33, P40 P47, P50 P57, P60 P67, P70 P77, P80 P87, XOUT, E		40 to +85	°C
T_stg	Power dissipation	Ta = 25 °C	65 to +150	°C
V_I	Operating temperature		0.3 to Vcc + 0.3	V
V_O	Storage temperature		0.3 to Vcc + 0.3	V

Note. When the EPROM is programmed, input voltage of pins CNVSS and BYTE is 13 V respectively.

Description

The M37735EHLXXXHP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37735EHLXXXHP also includes a 32 kHz oscillation circuit, in addition to the PROM, RAM, multiple-function timers, serial I/O, A-D converter, and so on.

M37735EHLXXXHP's strong points are the low power dissipation, the low supply voltage and the small package. The M37735EHLXXXHP has the same function as the M37735MHLXXXHP except that the built-in ROM is PROM. (Refer to the basic function blocks description.)
