Product Details

Description



Features:

Number of basic instructions .........................................................................................103
Memory size
    PROM ............................................................................................................................ 124 Kbytes
    RAM ............................................................................................................................... 3968 bytes
Instruction execution time
    The fastest instruction at 12 MHz frequency ..................................................................333 ns
Single power supply .......................................................................................................2.75.5 V
Low power dissipation (At 3 V supply voltage, 12 MHz frequency)................................  9 mW (Typ.)
Interrupts .....................................................................................................................  19 types, 7 levels
Multiple-function 16-bit timer ......................................................................................... 5 + 3
Serial I/O (UART or clock synchronous) .......................................................................... 3
10-bit A-D converter ....................................................................................................... 8-channel inputs
Watchdog timer
Programmable input/output (ports P0, P1, P2, P3, P4, P5, P6, P7, P8) ........................... 68
Clock generating circuit ................................................................................................... 2 circuits built-in
Small package ..................................................................................................................80-pin plastic molded fine-pitch QFP (0.5 mm lead pitch)


Application

Control devices for general commercial equipment such as office automation, office equipment, personal information equipment, and so on.

Control devices for general industrial equipment such as communication equipment, and so on.

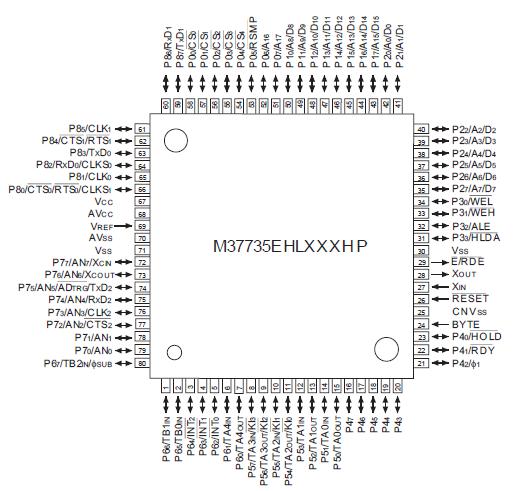

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Power source voltage
0.3 to 7.0
V
AVCC
 Analog power source voltage
0.3 to 7.0
V
VI
 Input voltage RESET, CNVss, BYTE
0.3 to +12(Note)
V
VI
 Input voltage      P00P07, P10P17, P20P27,
P40P47, P50P57, P60P67, P70, P71, P80P87,VREF,XIN,
0.3 to VCC+0.3
V
VO
 Output voltage   P00P07, P10P17, P20P27,
P40P47, P50P57, P60P67,  P70, P71, P80P87,XOUT, E
0.3 to VCC+0.3
V
Pd
 Power dissipation Ta = 25°C
200
mW
Topr
 Operating temperature
40 to 85
°C
Tstg
 Storage temperature
65 to 150
°C



Description

The M37735EHLXXXHP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37735EHLXXXHP also includes a 32 kHz oscillation circuit, in addition to the PROM, RAM, multiple-function timers, serial I/O, A-D converter,
and so on.

M37735EHLXXXHP's strong points are the low power dissipation, the low supply voltage and the small package.

The M37735EHLXXXHP has the same function as the M37735MHLXXXHP except that the built-in ROM is PROM. (Refer to the basic function blocks description.)
