Features: ·Number of basic instructions .................................................. 103
·Memory size PROM ............................................. 124 Kbytes
RAM ................................................ 3968 bytes
·Instruction execution time
The fastest instruction at 25 MHz frequency ...................... 160 ns
·Single power supply ...................................................... 5 V ± 10%
·Low power dissipation (at 25 MHz frequency)
............................................47.5 mW (Typ.)
·Interrupts ............................................................ 19 types, 7 levels
·Multiple-function 16-bit timer ................................................. 5 + 3
·Serial I/O (UART or clock synchronous) ..................................... 3
·10-bit A-D converter ............................................ 8-channel inputs
·Watchdog timer
·Programmable input/output
(ports P0, P1, P2, P3, P4, P5, P6, P7, P8) ............................... 68
·Clock generating circuit ........................................ 2 circuits built-inApplicationControl devices for general commercial equipment such as office automation, office equipment, and so on. Control devices for general industrial equipment such as communication equipment, and so on.
Note. Do not use the windowed EPROM version for mass production, because it is a tool for program development (for evaluation).

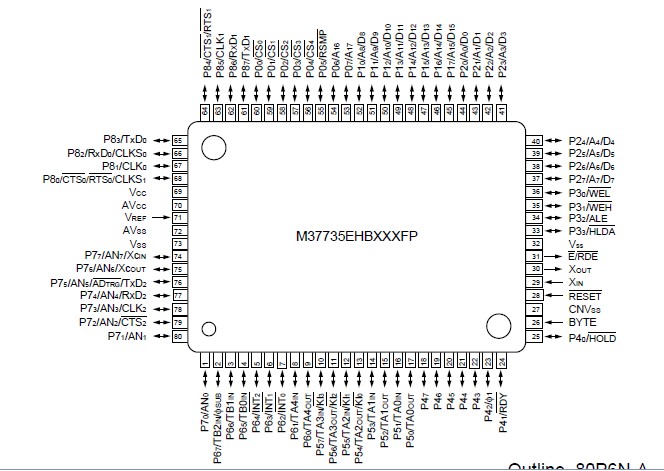

Pinout
Specifications
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
Vcc |
Power source voltage |
|
0.3 to +7 |
V |
|
AVcc |
Analog power source voltage |
|
0.3 to +7 |
V |
|
VI |
Input voltage RESET, CNVss, BYTE |
|
0.3 to +12 (Note) |
V |
|
VI |
Input voltage P00 P07, P10 P17, P20 P27,
P30 P33, P40 P47, P50 P57,
P60 P67, P70 P77, P80 P87,
VREF, XIN |
|
0.3 to Vcc + 0.3 |
V |
|
VO |
Output voltage P00 P07, P10 P17, P20 P27,
P30 P33, P40 P47, P50 P57,
P60 P67, P70 P77, P80 P87, _
XOUT, E |
|
0.3 to Vcc + 0.3 |
V |
|
Pd |
Power dissipation |
Ta = 25 |
300 |
mW |
|
Topr |
Operating temperature |
|
20 to +85 |
|
|
Tstg |
Storage temperature |
|
40 to +150 |
|
Note. When the EPROM is programmed, input voltage of pins CNVss and BYTE is 13 V respectively.
DescriptionThe M37735EHBXXXFP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37735EHBXXXFP also includes a 32 kHz oscillation circuit, in addition to the PROM, RAM, multiple-function timers, serial I/O, A-D converter, and so on.
The M37735EHBXXXFP has the same function as the M37735MHBXXXFP except that the built-in ROM is PROM. For program development, the M37735EHBFS with erasable ROM that is housed in a windowed ceramic LCC is also provided. (Refer to the basic function blocks description.)
