M37733M4LXXXHP

Features: `Number of basic instructions .................................................. 103`Memory size ROM ................................................. 32 KbytesRAM ................................................ 2048 bytes`Instruction execution time The fastest instruction at 12 MHz fre...

product image

M37733M4LXXXHP Picture
See larger image
SeekIC No. : 004404989 Detail

M37733M4LXXXHP: Features: `Number of basic instructions .................................................. 103`Memory size ROM ................................................. 32 KbytesRAM ...........................

M37733M4LXXXHP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M37733M4LXXXHP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Number of basic instructions .................................................. 103
`Memory size ROM ................................................. 32 Kbytes
                       RAM ................................................ 2048 bytes
`Instruction execution time
   The fastest instruction at 12 MHz frequency ...................... 333 ns
`Single power supply ...................................................... 2.75.5 V
`Low power dissipation (At 3 V supply voltage, 12 MHz frequency)
                                .         ........................................... 9 mW (Typ.)
`Interrupts ............................................................ 19 types, 7 levels
`Multiple-function 16-bit timer ................................................. 5 + 3
`Serial I/O (UART or clock synchronous) ..................................... 3
`10-bit A-D converter .............................................. 8-channel inputs
`12-bit watchdog timer
`Programmable input/output
   (ports P0, P1, P2, P3, P4, P5, P6, P7, P8) ............................... 68
`Clock generating circuit ........................................ 2 circuits built-in
`Small package ..................... 80-pin plastic molded fine-pitch QFP
                                                          (80P6D-A;0.5 mm lead pitch)


Application

Control devices for general commercial equipment such as office automation, office equipment, personal information equipment, and so on.

Control devices for general industrial equipment such as communication equipment, and so on.




Pinout

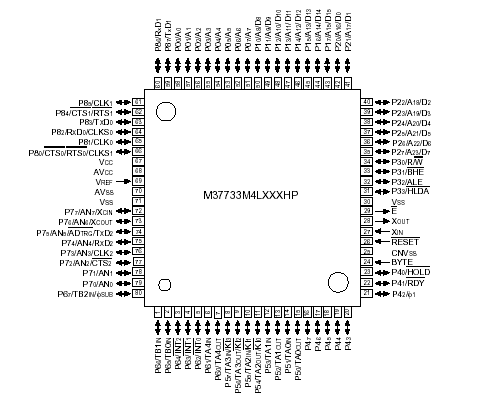

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Power source voltage
0.3 to +7
V
AVcc
 Analog power source voltage
0.3 to +7
V
VI
 Input voltage RESET, CNVss, BYTE
0.3 to +12
V
VI
 Input voltage
   P00 P07, P10 P17, P20 P27,
   P30 P33, P40 P47, P50 P57,
   P60 P67, P70 P77, P80 P87,
   VREF, XIN
0.3 to Vcc + 0.3
V
VO
 Output voltage
   P00 P07, P10 P17, P20 P27,
   P30 P33, P40 P47, P50 P57,
   P60 P67, P70 P77, P80 P87,
   XOUT, E
0.3 to VCC + 0.3
V
Pd
 Power dissipation
Ta = 25
200
mW
Topr
 Operating temperature
20 to +85
Tstg
 Storage temperature range
40 to 125




Description

The M37733M4LXXXHP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37733M4LXXXHP also includes a 32 kHz oscillation circuit, in addition to the ROM, RAM, multiple-function timers, serial I/O, A-D converter, and so on.

M37733M4LXXXHP's strong points are the low power dissipation, the low supply voltage, and the small package.
