M37733EHBFS

MCU 5V 124K PROM

product image

M37733EHBFS Picture
SeekIC No. : 004404985 Detail

M37733EHBFS: MCU 5V 124K PROM

floor Price/Ceiling Price

Part Number:
M37733EHBFS
Mfg:
Renesas Technology America
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Number of basic instructions .................................................. 103
·Memory size PROM ............................................. 124 Kbytes
                       RAM ................................................ 3968 bytes
·Instruction execution time
   The fastest instruction at 25 MHz frequency ...................... 160 ns
·Single power supply ...................................................... 5 V ± 10%
·Low power dissipation (at 25 MHz frequency)
                                      ............................................47.5 mW (Typ.)
·Interrupts ............................................................ 19 types, 7 levels
·Multiple-function 16-bit timer ................................................. 5 + 3
·Serial I/O (UART or clock synchronous) ..................................... 3
·10-bit A-D converter ............................................ 8-channel inputs
·Watchdog timer
·Programmable input/output
   (ports P0, P1, P2, P3, P4, P5, P6, P7, P8) ............................... 68
·Clock generating circuit ........................................ 2 circuits built-in



Application

Control devices for general commercial equipment such as office automation, office equipment, and so on. Control devices for general industrial equipment such as communication equipment, and so on.

Note. Do not use the windowed EPROM version for mass production, because it is a tool for program development (for evaluation).




Pinout

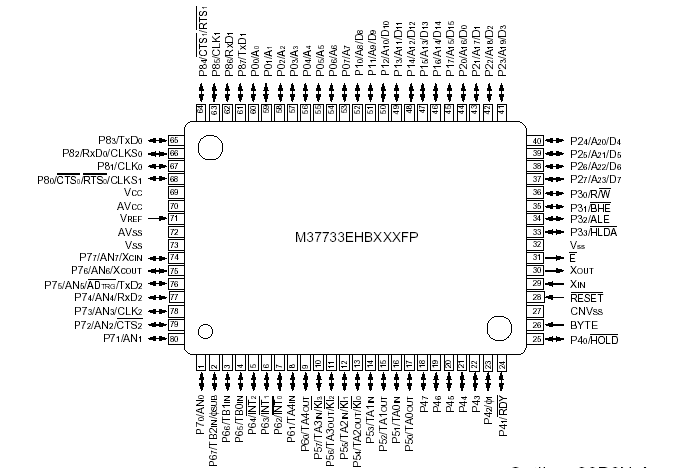

  Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
Power source voltage
0.3 to +7
V
AVcc
Analog power source voltage
0.3 to +7
V
VI
Input voltage RESET, CNVss, BYTE
0.3 to +12 (Note)
V
VI
Input voltage
   P00 P07, P10 P17, P20 P27,
   P30 P33, P40 P47, P50 P57,
   P60 P67, P70 P77, P80 P87,
   VREF, XIN
0.3 to Vcc + 0.3
V
VO
Output voltage
   P00 P07, P10 P17, P20 P27,
   P30 P33, P40 P47, P50 P57,
   P60 P67, P70 P77, P80 P87,
   XOUT, E
0.3 to VCC + 0.3
V
Pd
Power dissipation
Ta = 25
300
mW
Topr
Operating temperature
20 to +85
Tstg
Storage temperature range
40 to 125

Note. When the EPROM is programmed, input voltage of pins CNVss and BYTE is 13 V respectively.


Description

The M37733EHBXXXFP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. M37733EHBFS also includes a 32 kHz oscillation circuit, in addition to the PROM, RAM, multiple-function timers, serial I/O, A-D converter, and so on.

The M37733EHBXXXFP has the same function as the M37733MHBXXXFP except that the built-in ROM is PROM. (Refer to the basic function blocks description.) For program development, the M37733EHBFS with erasable ROM that is housed in a windowed ceramic LCC is also provided.




Parameters:

Technical/Catalog InformationM37733EHBFS
VendorRenesas Technology America
CategoryIntegrated Circuits (ICs)
Program Memory Size124KB (124K x 8)
RAM Size3968 x 8
Number of I /O68
Package / Case80-CLCC
Speed25MHz
Controller Series7700
Oscillator TypeInternal
PackagingTube
Program Memory TypeEPROM
EEPROM Size-
Core Processor7700
Data ConvertersA/D 8x10b
Core Size16-Bit
Operating Temperature-20°C ~ 85°C
ConnectivityEBI/EMI, SIO, UART/USART
PeripheralsWDT
Voltage - Supply (Vcc/Vdd)2.7 V ~ 5.5 V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names M37733EHBFS
M37733EHBFS
