M37515M4-C07HP

Features: `Basic machine-language instructions ...................................... 71`Minimum instruction execution time .................................. 0.5 ms (at 8 MHz oscillation frequency)`Memory size ROM ............................................................................. 16 Kb...

product image

M37515M4-C07HP Picture
See larger image
SeekIC No. : 004404958 Detail

M37515M4-C07HP: Features: `Basic machine-language instructions ...................................... 71`Minimum instruction execution time .................................. 0.5 ms (at 8 MHz oscillation frequency)...

M37515M4-C07HP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M37515M4-C07HP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Basic machine-language instructions ...................................... 71
`Minimum instruction execution time .................................. 0.5 ms
    (at 8 MHz oscillation frequency)
`Memory size
    ROM ............................................................................. 16 Kbytes
    RAM.............................................................................. 512 bytes
`Programmable input/output ports ............................................ 40
`Interrupts ................................................. 16 sources, 16 vectors
`Timers ............................................................................. 8-bit 5 4
`Serial I/O ....................... 8-bit 5 1(UART or Clock-synchronized)
`Multi-master I2C-bus interface (option) ....................... 1 channel
`PWM ............................................................................... 8-bit 5 1
`A-D converter ............................................... 10-bit 5 8 channels
`Watchdog timer ............................................................ 16-bit 5 1
`Clock generating circuit ..................................... Built-in 2 circuits
    (connect to external ceramic resonator or quartz-crystal oscillator)
`Power source voltage
    In high-speed mode .................................................. 4.0 to 5.5 V
    (at 8 MHz oscillation frequency)
    In high-speed mode .................................................. 2.7 to 5.5 V
    (at 4 MHz oscillation frequency)
    In middle-speed mode ............................................... 2.7 to 5.5 V
    (at 8 MHz oscillation frequency)
    In low-speed mode .................................................... 2.7 to 5.5 V
    (at 32 kHz oscillation frequency)
`Power dissipation
    In high-speed mode ..........................................................34 mW
    (at 8 MHz oscillation frequency, at 5 V power source voltage)
    In low-speed mode ............................................................ 60 mW
    (at 32 kHz oscillation frequency, at 3 V power source voltage)
`Operating temperature range.................................... 20 to 85°C


Pinout

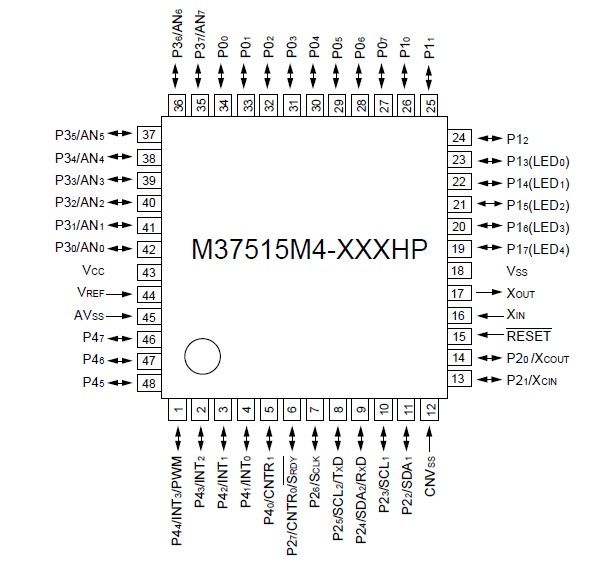

Connection Diagram


Description

The M37515M4-XXXHP is the 8-bit microcomputer based on the 740 family core technology.

The M37515M4-XXXHP is designed for the household products and office automation equipment and includes serial I/O functions, 8-bit timer, A-D converter, and I2C-bus interface.
