Product Details

Description

Features:

Number of basic instructions .................................................... 71
Memory size
ROM .............. 24K bytes
(M37272M6H-XXXSP/FP)
32K bytes
(M37272M8H-XXXSP/FP, M37272E8SP/FP)
40K bytes
(M37272MAH-XXXSP/FP)
60K bytes
(M37272MFH-XXXSP/FP, M37272EFSP/FP)
RAM ............... 1024 bytes
(M37272M6H-XXXSP/FP)
1152 bytes
(M37272M8H-XXXSP/FP, M37272E8SP/FP)
1472 bytes
(M37272MAH-XXXSP/FP, M37272MFH- .
XXXSP/FP, M37272EFSP/FP)
(*ROM correction memory included)
Minimum instruction execution time
......................................... 0.5 s (at 8 MHz oscillation frequency)
Power source voltage ................................................. 5 V ± 10 %
Subroutine nesting ............................................. 128 levels (Max.)
Interrupts ....................................................... 17 types, 16 vectors
8-bit timers .................................................................................. 6
Programmable I/O ports (Ports P0, P1, P2, P30, P31) ............. 26
Input ports (Ports P50, P51) ........................................................ 2
Output ports (Ports P52P55) ..................................................... 4
12 V withstand ports ................................................................... 6
LED drive ports ........................................................................... 4
Serial I/O ............................................................ 8-bit *1 channel
Multi-master I2C-BUS interface .............................. 1 (2 systems)
A-D comparator (6-bit resolution) ................................ 6 channels
PWM output circuit ......................................................... 8-bit *6
Power dissipation
In high-speed mode ......................................................... 165 mW
(at VCC = 5.5V, 8 MHz oscillation frequency, OSD on, and Data
slicer on)
In low-speed mode ......................................................... 0.33 mW
(at VCC = 5.5V, 32 kHz oscillation frequency)
ROM correction function ................................................ 2 vectors
Closed caption data slicer
OSD function
Display characters ................................... 32 characters * 2 lines
(It is possible to display 3 lines or more by software)
Kinds of characters ........................................................ 254 kinds
Character display area ............................ CC mode: 16 * 26 dots
OSD mode: 16 * 20 dots
Kinds of character sizes ..................................... CC mode: 1 kind
OSD mode: 8 kinds
Kinds of character colors .................................. 8 colors (R, G, B)
Coloring unit ................... character, character background, raster
Display position
Horizontal: 128 levels Vertical: 512 levels
Attribute ........................................................................................
CC mode: smooth italic, underline, flash, automatic solid space
OSD mode: border
Smoth roll-up
Window function

Application

TV with a closed caption decoder

Pinout

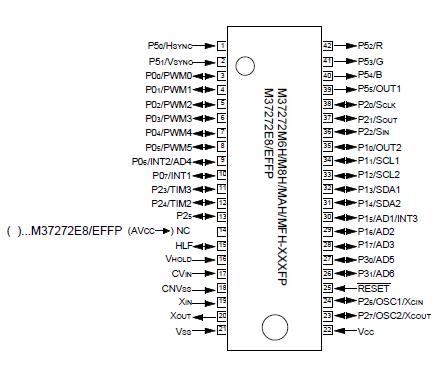

Connection Diagram

Specifications

Symbol	Parametear	Conditions	Ratings	Unit
V_CC (AV_CC)	Power source voltage V_CC (AV_CC...M37272E8SP/FP, M37272EFSP/FP)	All voltages are based on V_SS. Output transistors are cut off.	0.3 to 6	V
V_I	Input voltage CNVSS		0.3 to 6	V
V_I	Input voltage P00P07, P10P17, P20P27, P30, P31, P50, P51, XIN, RESET, CVIN		0.3VCC + 0.3	V
V_O	Output voltage P06, P07, P10P17, P20P27, P30, P31, P52P55, XOUT		0.3VCC + 0.3	V
V_O	Output voltage P00P05		0.3 to 13	V
I_OH	Circuit current P10P17, P20P27, P30, P31 P52P55		0 to 1 (See note 1)	mA
I_OL1	Circuit current P06, P07, P10, P15P17, P20P23, P26, P27, P52P55		0 to 2 (See note 2)	mA
I_OL2	Circuit current P11P14		0 to 6 (See note 2)	mA
I_OL3	Circuit current P00P05		0 to 1 (See note 2)	mA
I_OL4	Circuit current P24, P25, P30, P31		0 to 10 (See note 3)	mA
P_d	Power dissipation	Ta = 25 °C	550	mW
T_opr	Operating temperature		10 to 70	°C
T_stg	Storage temperature		40 to 125	°C

Description

The M37272M6H/M8H/MAH/MFH-XXXSP/FP are single-chip microcomputers designed with CMOS silicon gate technology. They have a OSD, data slicer, and I2C-BUS interface, so it is useful for a channel selection system for TV with a closed caption decoder. The features of the M37272E8SP/FP and M37272EFSP/FP are similar to those of the M37272M6H-XXXSP/FP except that the chip has a built-in PROM which can be written electrically. The difference between M37272M6H/M8H/MAH/MFH-XXXSP/FP are the ROM size and RAM size. Accordingly, the following descriptions will be for the M37272M6H-XXXSP/FP.
