M37221M6-XXXSP

Features: • Number of basic instructions .....................................................71• Memory size ROM ........................................................24 K bytesRAM.......................................................... 384 bytes ROM for display .....................

product image

M37221M6-XXXSP Picture
See larger image
SeekIC No. : 004404911 Detail

M37221M6-XXXSP: Features: • Number of basic instructions .....................................................71• Memory size ROM ........................................................24 K bytesRAM......

M37221M6-XXXSP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M37221M6-XXXSP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of basic instructions .....................................................71
• Memory size
                          ROM ........................................................24 K bytes
                          RAM.......................................................... 384 bytes
                          ROM for display ......................................... 8 K bytes
                          RAM for display .......................................... 96 bytes
• The minimum instruction execution time
     .......................................... 0.5s (at 8 MHz oscillation frequency)
• Power source voltage ................................................... 5 V ± 10 %
• Power dissipation.............................................................. 165 mW
   (at 8 MHz oscillation frequency, VCC=5.5V, at CRT display)
• Subroutine nesting ......................................... 96 levels (maximum)
• Interrupts ....................................................... 14 types, 14 vectors
• 8-bit timers .................................................................................. 4
• Programmable I/O ports (Ports P0, P1, P2, P30P32) ................ 27
• Input ports (Ports P33, P34) ......................................................... 2
• Output ports (Ports P52P55) ...................................................... 4
• 12 V withstand ports .................................................................... 6
• LED drive ports ............................................................................. 4
• Serial I/O ............................................................ 8-bit 5 x 1 channel
• Multi-master I2C-BUS interface .................................. 1 (2 systems)
• A-D comparator (6-bit resolution) ................................... 6 channels
• PWM output circuit....................................... 14-bit 5 x 1, 8-bit 5 x 6


Application

TV

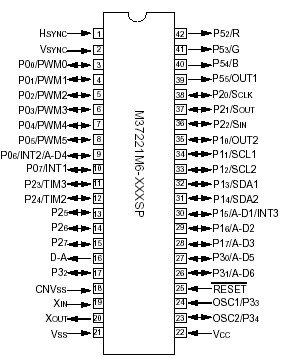

Pinout

Connection Diagram


Specifications

Symbol
Conditions
Parameter
Ratings
Unit
VCC
 Power source voltage VCC All voltages are based
on VSS.
Output transistors are
cut off.
0.3 to 6
V
VI Input voltage               CNVSS
0.3 to 6
V
VI Input voltage               P00P07,P10P17, P20P27,
                                    P30P34, OSC1, XIN, HSYNC,
                                    VSYNC, RESET
0.3 to VCC + 0.3
V
VO Output voltage            P06, P07, P10P17, P20P27,
                                    P30P32, R, G, B, OUT1, D-A,
                                    XOUT, OSC2
0.3 to VCC + 0.3
V
VO Output voltage             P00P05
0.3 to 13
V
IOH
 Circuit current               R, G, B, OUT1, P10P17,
                                     P20P27, P30, P31, D-A
0 to 1 (Note 1)
mA
IOL1 Circuit current               R, G, B, OUT1, P06, P07, P10,
                                     P15P17, P20P23, P30P32,
                                     D-A
0 to 2 (Note 2)
mA
IOL2
 Circuit current               P11P14

0 to 6 (Note 2)
mA
IOL3 Circuit current               P00P05
0 to 1 (Note 2)
mA
IOL4
 Circuit current               P24P27
0 to 10 (Note 3)
mA
Pd Power dissipation Ta = 25 °C
550
mW
Topr
 Operating temperature

10 to 70
°C
Tstg Storage temperature
40 to 125
°C



Description

The M37221M6-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a 42-pin shrink plastic molded DIP.

In addition to their simple instruction sets, the ROM, RAM and I/O addresses M37221M6-XXXSP are placed on the same memory map to enable easy programming.

The M37221M6-XXXSP has a PWM output function and a OSD display function, so it is useful for a channel selection system for TV.
