Product Details

Description

Features:

• Number of basic instructions ....................................................... 71
• Memory size
ROM ............................................................................................. 12 K bytes
RAM .............................................................................................. 256 bytes
ROM for display............................................................................. 4 K bytes
RAM for display ............................................................................. 80 bytes
• The minimum instruction execution time........................................0.5s (at 8 MHz oscillation frequency)
• Power source voltage ................................................................. 5 V ± 10 %
• Power dissipation ...................................................................... 165 mW
      (at 8 MHz oscillation frequency, V_CC=5.5V, at CRT display)
• Subroutine nesting .................................................................... 96 levels (maximum)
• Interrupts .................................................................................. 13 types, 13 vectors
• 8-bit timers ................................................................................ 4
• Programmable I/O ports (Ports P0, P1, P2, P30P32) .............. 27
• Input ports (Ports P33, P34) .......................................................2
• Output ports (Ports P52P55) ...................................................4
• 12 V withstand ports ..................................................................6
• LED drive ports ...........................................................................4
• Serial I/O ................................................................................... 8-bit 5 1 channel
• A-D comparator (6-bit resolution) ............................................. 6 channels
• D-A converter (6-bit resolution) .................................................2
• PWM output circuit ................................................................... 14-bit 5 1, 8-bit 5 6
• CRT display function
   Number of display characters ................................................... 24 characters 5 2 lines (16 lines maximum)
   Kinds of characters ................................................................... 128 kinds
   Dot structure ............................................................................ 12 5 16 dots
Kinds of character sizes ............................................................ 3 kinds
Kinds of character colors (It can be specified by the character)
      maximum 7 kinds (R, G, B)
   Kinds of raster colors (maximum 7 kinds)
Display position
      Horizontal .............................................................................. 64 levels
      Vertical .................................................................................. 128 levels
   Bordering (horizontal and vertical)

Application

TV

Pinout

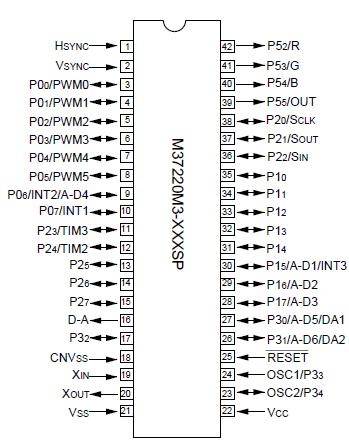

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
V_CC,AV_CC	Power source voltageV_CC, AV_CC	All voltages are based on VSS.Output transistors are cut off.	0.3 to 6	V
V_I	Input voltage CNVSS		0.3 to 6	V
V_I	Output voltage P0₀P0₇, P1₀ P1₇, P2₀,P2₁, P3₀,P3₁, P4₀P4₆,P64,P63,P7₀P7₂, X_IN, H_SYNC, V_SYNC,RESET		0.3 to V_CC+0.3	V
V_O	Output voltage P0₃, P1₀P1₇, P2₀P2₇, P3₀,P3₁, P5₂ P5₅, S_OUT, S_CLK, X_OUT,OSC2		0.3 to V_CC+0.3	V
V_O	Output voltage P0₀P0₅		0.3 to 13	V
I_OH	Circuit current R,G,B,OUT1, P1₀P1₇,P2₀ P2₇, P3₀, P3₁ ,D-A		0 to 1 (Note 1)	mA
I_OL1	Circuit current R,G,B,OUT1,P0₆,P0₇, P1₀, P1₅P1₇, P2₀ P2₃, P3₀P3₂, D-A		0 to2 (Note 2)	mA
I_OL2	Circuit current P0₀P0₅		0 to 1 (Note 2)	mA
I_OL3	Circuit current P2₄, P2₇		0 to 10 (Note 3)	mA
P_d	Power dissipation	Ta = 25°C	550	mW
T_opr	Operating temperature		10 to 70	°C
T_stg	Storage temperature		40 to 125	°C

Description

The M37220M3-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a 42-pin shrink plastic molded DIP.

In addition to their simple instruction sets, the ROM, RAM and I/O M37220M3-XXXSP addresses are placed on the same memory map to enable easy programming.

The M37220M3-XXXSP has a PWM output function and a OSD display function, so it is useful for a channel selection system for TV.
