M37212EFFP

Features: `Number of basic instructions ..................................................... 71`Memory size ROM............... ......... 16K bytes (M37212M4-XXXSP) 24K bytes (M37212M6-XXXSP/FP)32K bytes (M37212M8-XXXSP) 62K bytes (M37212EFSP/FP) RAM ......................... 320 bytes (M37212M4-X...

product image

M37212EFFP Picture
See larger image
SeekIC No. : 004404901 Detail

M37212EFFP: Features: `Number of basic instructions ..................................................... 71`Memory size ROM............... ......... 16K bytes (M37212M4-XXXSP) 24K bytes (M37212M6-XXXSP/FP)32K ...

M37212EFFP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M37212EFFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Number of basic instructions ..................................................... 71
`Memory size
   ROM............... ......... 16K bytes (M37212M4-XXXSP)
                                    24K bytes (M37212M6-XXXSP/FP)
                                    32K bytes (M37212M8-XXXSP)
                                    62K bytes (M37212EFSP/FP)
   RAM ......................... 320 bytes (M37212M4-XXXSP)
                                    384 bytes (M37212M6-XXXSP/FP)
                                    576 bytes (M37212M8-XXXSP)
                                    1280 bytes (M37212EFSP/FP)
                   (*ROM correction memory included)
`The minimum instruction execution tim
.................................... 0.5 s (at 8 MHz oscillation frequency)
`Power source voltage .................................................. 5 V ± 10 %
`Subroutine nesting
   maximum 96 levels (M37212M4/M8-XXXSP, M37212M6-XXXSP/FP)
   maximum 128 levels (M37212EFSP/FP)
`Interrupts ........................................................ 14 types, 14 vectors
`8-bit timers ................................................................................... 4
`Programmable I/O ports
          (Ports P0, P10P14, P2, P30, P31, P40, P41) ............................. 25
`Input ports (Ports P15P17, P32P37, P42) ............................... 10
`Output ports (Ports P52P55, P60P63) ....................................... 8
`12 V withstand ports .................................................................. 12
`LED drive ports ............................................................................ 4
`Serial I/O ............................................................. 8-bit * 1 channel
`Multi-master I2C-BUS interface ............................... 1 (2 systems)
`A-D comparator (6-bit resolution) ................................. 8 channels
`PWM output circuit .......................................... 14-bit * 1, 8-bit * 8
`Power dissipation .............................................................. 165 mW
                (at 8 MHz oscillation frequency, VCC=5.5V, at OSD display)
`ROM correction function ................................................. 2 vectors
Note: Only M37212M8-XXXSP and M37212EFSP/FP have ROM correction function.
`OSD function
    Display characters ................................... 24 characters * 2 lines
                (It is possible to display 3lines or more by software)
   Kinds of characters ........................................................ 256 kinds
   Character display area .............................................. 12 *16 dots
   Kinds of character sizes ..................................................... 3 kinds
   Kinds of character colors .................................. 8 colors (R, G, B)
   Coloring unit ................... character, character background, raster
   Display position .............................................................................
       Horizontal: 64 levels Vertical: 128 levels
  Attribute .............................................................................. border


Application

TV


Pinout

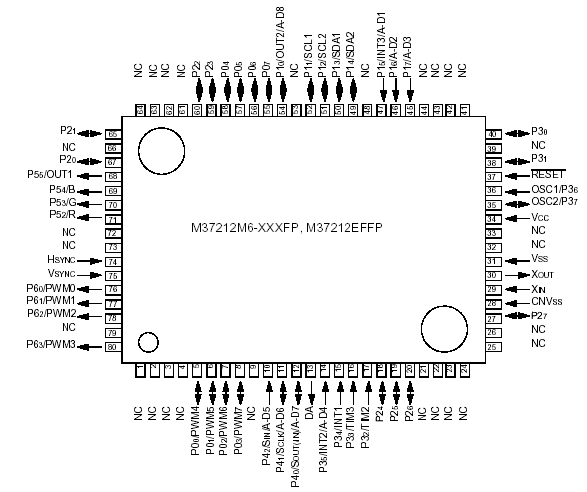

Connection Diagram




Specifications

Symbol
Parameter
Condition
Ratings
Unit
VCC, AVCC
 Power source voltageVCC
All voltages are
based on VSS.
Output transistors
are cut off.
0.3 to 6
V
VI
 Input voltage CNVSS
0.3 to 6
V
VI
 Inputvoltage
P00P07,P10P17,P20P27,
P30P37, P40P42, OSC1, XIN,
HSYNC, VSYNC, RESET
0.3 to VCC + 0.3
V
VO
 Output voltage
P10P14, P20P17, P30, P31,
P40, P41, R, G, B, OUT1, DA
XOUT, OSC2
0.3 to VCC + 0.3
V
VO
 Output voltage P00P07, P60P63
0.3 to 13
V
IOH
 Circuit current
R, G, B, OUT1, P10P14,
P20P27, P30, P31, DA
0 to 1 (See note 1)
mA
IOL1
 Circuit current
R, G, B, OUT1, P06, P07, P10,
P20P23, P30, P31, P40, P41, DA
0 to 2 (See note 2)
mA
IOL2
 Circuit current P11P14
0 to 6 (See note 2)
mA
IOL3
 Circuit current
P00P07, P60P63
0 to 1 (See note 2)
mA
IOL4
 Circuit current P24P27
0 to 10 (See note 3)
mA
Pd
 Power dissipation
Ta = 25
550
mW
Topr
 Operating temperature
10 to 70
Tstg
 Storage temperature range
40 to 125



Description

The M37212M6-XXXSP/FP, M37212M4/M8-XXXSP are single-chip microcomputers designed with CMOS silicon gate technology. They have a OSD, I2C-BUS interface, and PWM, so it is useful for a channel selection system for TV.

The feature of the M37212EFSP/FP are similar to those of the M37212M6-XXXSP/FP except that these chips have a built-in PROM which can be written electrically. The differences between the M37212M6-XXXSP/FP and M37212M4/M8-XXXSP are the ROM size and the RAM size as shown below. Accordingly, the following descriptions will be for M37212M6-XXXSP/FP unless otherwise noted.
