M35062-XXXSP

Features: • Screen composition ................................40 characters 5 17 lines (at scrolling ............................................40 characters 5 16 lines)• Number of characters displayed ...................................680 (Max.)• Character composition ..........

product image

M35062-XXXSP Picture
See larger image
SeekIC No. : 004404794 Detail

M35062-XXXSP: Features: • Screen composition ................................40 characters 5 17 lines (at scrolling ............................................40 characters 5 16 lines)• Number of cha...

M35062-XXXSP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M35062-XXXSP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Screen composition ................................40 characters 5 17 lines
   (at scrolling ............................................40 characters 5 16 lines)
• Number of characters displayed ...................................680 (Max.)
• Character composition .....................................12 5 13 dot matrix
• Characters available character ROM ......................128 characters
                                             RAM ................................ 7 characters
• Character sizes available horizontal ....................  2 (once, twice)
                                               rtical ........................  2 (once, twice)
                                                                        setting by every line
• Display locations available
   Horizontal direction ................................................486 locations
   Vertical direction .................................................... 235 locations
• Blinking .................................................................character units
   Cycle ....  approximately 1 second, or approximately 0.5 seconds
                                                                                     (per screen)
   Duty .................................................................25%, 50% or 75%
                                                                                      (per screen)
• ata input ............................................................ 8-bit parallel 5 3
• Coloring Character coloring .8 colors choices per character (Note)
   Background coloring ............8 colors choices per character (Note)
   Raster coloring .................................. 8 colors choices per screen
• Blanking Character size blanking
                                                                        Border size blanking
                                                                                    Matrix-outline
                                                                              Halftone blanking
                                                                   Can be set by every line
• General-purpose output ports Combined port output ...........     6
• RAM erase ............................   Display RAM erasing by every line
                                                                SYRAM erasing separately
• Scrolling ..........  Bit by bit smooth scroll implemented by software
• Composite synchronizating signal generation ...................Built-in
                                                                           (PAL, NTSC, M-PAL)
• Display oscillation circuit .................................................... Built-in
• Synchronous separation circuit ..........................................Built-in
• Synchronous correction circuit ........................................... Built-in
Note: Superimpose coloring is available. (NTSC, PAL, M-PAL)

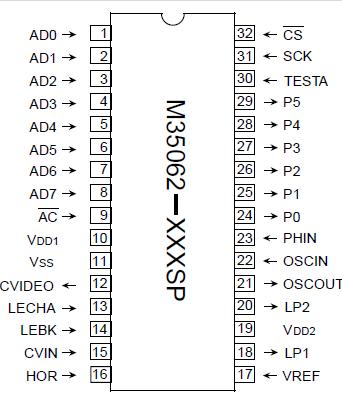

Pinout

Connection Diagram


Specifications

Symbol Parameter
Conditions
Ratings
Unit
VDD Input voltage
With respect to VSS.
0.3 to +6.0
V
VI Input Voltage
VSS 0.3 VI VDD +0.3
V
VO Output voltage
VSS VO VDD
V
pd Power dissipation
Ta = +25
+300
mW
Ptot Operating temperature
20 to + 70
Tstg Storage temperature
40 to + 125



Description

M35062-XXXSP is CATV screen display control IC which can display 0 (horizontal) ´ 17 (vertical). It has built-in SYRAM which can be sed with character ROM.

It uses a silicon gate CMOS process and M35062-XXXSP housed in  small 32-pin shrink DIP package. For M35062-001SP that is a standard OM version of M35062-XXXSP, the character pattern is also entioned.
