Product Details

Description



Features:

• Screen composition ................................40 characters 5 16 lines
• Number of characters displayed ..................................680 (Max.)
• Character composition ....................................12 5 13 dot matrix
• Characters available character ROM .....................256 characters
   SYRAM .............................. 63 characters
• Character sizes available horizontal .................... 2 (once, twice)
   vertical ......................... 2 (once, twice)
   setting by every line
• Display locations available
   Horizontal direction ................................................ 480 locations
   Horizontal direction ................................................ 480 locations
• Blinking .................................................................character units
   Cycle ....  approximately 1 second, or approximately 0.5 seconds
   Cycle ....  approximately 1 second, or approximately 0.5 seconds
• Data input ..........................................................  -bit parallel 5 3
• Coloring Character coloring .......... 8 colors choices per character
   Background coloring ..................... 8 colors choices per character
   Raster coloring ..................................8 colors choices per screen
• Blanking Character size blanking
                                                                        Border size blanking
                                                                                   Matrix-outline
                                                                             Halftone blanking
                                                                  Can be set by every line
•  General-purpose output ports Combined port output ............. 6
                                                                (switching to RGB output)
• RAM erase .............................   Display RAM erasing by every line
                                                                SYRAM erasing separately
• Scrolling ........... Bit by bit smooth scroll implemented by software
• Composite synchronizating signal generation ....................Built-in
                                                                           (PAL, NTSC, M-PAL)
• Display oscillation circuit .................................................... Built-in
• Synchronous separation circuit ......................................... Built-in
• Synchronous correction circuit ........................................... Built-in

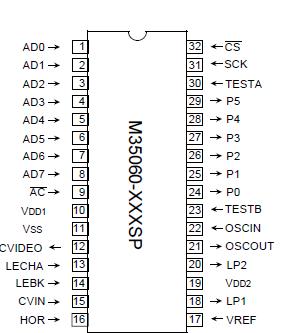

Pinout

Connection Diagram


Specifications

Symbol Parameter
Conditions
Ratings
Unit
VDD Input voltage
With respect to VSS.
0.3 to +6.0
V
VI Input Voltage
VSS 0.3 VI VDD +0.3
V
VO Output voltage
VSS VO VDD
V
pd Power dissipation
Ta = +25
+300
mW
Ptot Operating temperature
20 to + 85
Tstg Storage temperature
40 to + 125



Description

M35060-XXXSP is CATV screen display control IC which can display 0 (horizontal) 5 16 (vertical). It has built-in SYRAM which can e used with character ROM.

M35060-XXXSP uses a silicon gate CMOS process and it housed in a small 32-pin hrink DIP package. For M35060-001SP and M35060-002SP that re standard ROM versions of M35060-XXXSP, the character patterns re also mentioned.
