Product Details

Description



Features:

• Screen composition .............................. 24 characters 5 10 lines
                                                                   32 characters 5 7 lines
• Number of characters displayed .................................240 (Max.)
• Character composition ...................................12 5 18 dot matrix
• Characters available ............................................128 characters
• Character sizes available .................. 4 (horizontal) 5 4 (vertical)
• Display locations available
   Horizontal direction ............................................... 240 locations
   Vertical direction ................................................... 256 locations
• Blinking ...............................................................Character units
   Cycle : approximately 1 second, or approximately 0.5 seconds
   Duty : 25%, 50%, or 75%
• Data input ......................... By the serial input function (16 bits)
• Coloring
   Background coloring (composite video signal)
• Blanking
   Total blanking (14 5 18 dots)
   Border size blanking
   Character size blanking
• Synchronizing signal
   Composite synchronizing signal generation (PAL, NTSC, M-PAL)
• 2 output ports (1 digital line)
• Oscillation stop function
   It is possible to stop the oscillation for synchronizing signal generation
• Built-in half-tone display function
• Built-in reversed character display function
• Built-in synchronous correction circuit
• Built-in synchronous separation circuit


Application

TV, VCR, Movie


Pinout

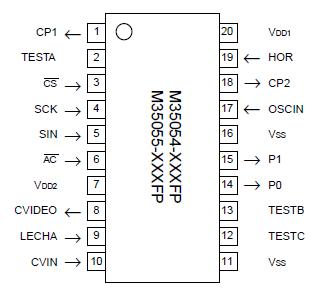

Connection Diagram


Specifications

Symbol Parameter
Conditions
Ratings
Unit
VDD Input voltage
With respect to VSS.
0.3~6.0
V
VI Input Voltage
VSS 0.3 VI VDD +0.3
V
VO Output voltage
VSS VO VDD
V
pd Power dissipation
Ta = +25
+300
mW
Ptot Operating temperature
20~70
Tstg Storage temperature
40~125



Description

The M35054-XXXFP and M35055-XXXFP are TV screen display control C which can be used to display information such as number of hannels, the date and messages and program schedules on the TV creen.

In particular, owing to the built-in SYNC-SEP (synchronous separation) circuit, the synchronous correction circuit, external circuits can e decrease and character turbulence that occurs when superimposing an be reduced. The processor M35054-XXXFP and M35055-XXXFP is suitable for AV systems uch as VTRs, LDs, and so on.

M35054-XXXFP and M35055-XXXFP is a silicon gate CMOS process and M35054-XXXFP and M35055- XXFP are housed in a 20-pin shrink SOP package.

For M35054-001FP/M35055-001FP that are a standard ROM versions f M35054-XXXFP/M35055-XXXFP respectively, the character attern is also mentioned.
