M35053-XXXSP

Features: • Screen composition .............................. 24 characters 5 10 lines32 characters 5 7 lines• Number of characters displayed .................................240 (Max.)• Character composition ...................................12 5 18 dot matrix• Characters...

product image

M35053-XXXSP Picture
See larger image
SeekIC No. : 004404788 Detail

M35053-XXXSP: Features: • Screen composition .............................. 24 characters 5 10 lines32 characters 5 7 lines• Number of characters displayed .................................240 (Max.)&...

M35053-XXXSP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M35053-XXXSP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Screen composition .............................. 24 characters 5 10 lines
                                                                   32 characters 5 7 lines
• Number of characters displayed .................................240 (Max.)
• Character composition ...................................12 5 18 dot matrix
• Characters available ............................................128 characters
• Character sizes available .................. 4 (horizontal) 5 4 (vertical)
• Display locations available
   Horizontal direction ............................................... 240 locations
   Vertical direction ................................................... 256 locations
• Blinking ...............................................................Character units
   Cycle : approximately 1 second, or approximately 0.5 seconds
   Duty : 25%, 50%, or 75%
• Data input ......................... By the serial input function (16 bits)
• Coloring
   Background coloring (composite video signal)
• Blanking
   Total blanking (14 5 18 dots)
   Border size blanking
   Character size blanking
• Synchronizing signal
   Composite synchronizing signal generation (PAL, NTSC, M-PAL)
• 2 output ports (1 digital line)
• Oscillation stop function
   It is possible to stop the oscillation for synchronizing signal eneration
• Built-in half-tone display function
• Built-in reversed character display function
• Built-in Decoder (NTSC only)
• Built-in Encoder (NTSC only)
• Built-in synchronous correction circuit
• Built-in synchronous separation circuit


Application

TV, VCR, Movie

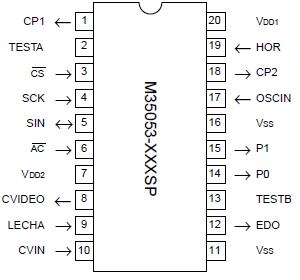

Pinout

Connection Diagram


Specifications

Symbol Parameter
Conditions
Ratings
Unit
VDD Input voltage
With respect to VSS.
0.3 to +6.0
V
VI Input Voltage
VSS 0.3 VI VDD +0.3
V
VO Output voltage
VSS VO VDD
V
pd Power dissipation
Ta = +25
+300
mW
Ptot Operating temperature
20~70
Tstg Storage temperature
40~125



Description

The M35053-XXXSP/FP is TV screen display control IC which can e used to display information such as number of channels, the date nd messages and program schedules on the TV screen.

In particular, owing to the built-in SYNC-SEP (synchronous separation) ircuit, the synchronous correction circuit, the Decoder circuit, nd to the Encoder circuit, external circuits of M35053-XXXSP can be decrease and haracter turbulence that occurs when superimposing can be reduced. he processor can conform to the EDS broadcast service and M35053-XXXSP is suitable or AV systems such as VTRs, LDs, and so on.

It is a silicon gate CMOS process and M35053-XXXSP is housed in  20-pin shrink DIP package, M35053-XXXFP is housed in a 20-pin hrink SOP package.

For M35053-001SP/FP that is a standard ROM version of M35053- XXSP/FP respectively, the character pattern is also mentioned.
