Features:

• Screen composition .............................. 24 characters 5 10 lines
                                                                   32 characters 5 7 lines
• Number of characters displayed .................................240 (Max.)
• Character composition ...................................12 5 18 dot matrix
• Characters available ............................................128 characters
• Character sizes available .................. 4 (horizontal) 5 4 (vertical)
• Display locations available
   Horizontal direction ............................................... 240 locations
   Vertical direction ................................................... 256 locations
• Blinking ...............................................................Character units
   Cycle : approximately 1 second, or approximately 0.5 seconds
   Duty : 25%, 50%, or 75%
• Data input ......................... By the serial input function (16 bits)
• Coloring
   Background coloring (composite video signal)
• Blanking
   Total blanking (14 5 18 dots)
   Border size blanking
   Character size blanking
• Synchronizing signal
   Composite synchronizing signal generation (PAL, NTSC, M-PAL)
• 2 output ports (1 digital line)
• Oscillation stop function
   It is possible to stop the oscillation for synchronizing signal eneration
• Built-in half-tone display function
• Built-in reversed character display function
• Built-in Decoder (NTSC only)
• Built-in Encoder (NTSC only)
• Built-in synchronous correction circuit
• Built-in synchronous separation circuit


Application

TV, VCR, Movie


Pinout

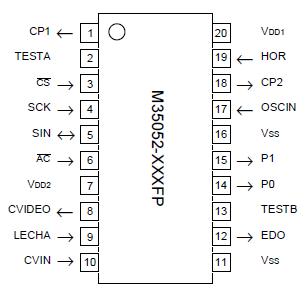

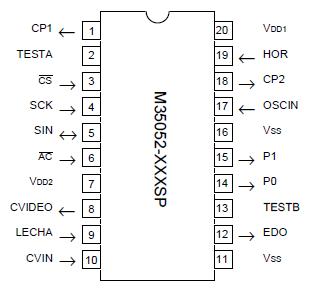

Connection Diagram  Connection Diagram


Specifications

Symbol Parameter
Conditions
Ratings
Unit
VDD Input voltage
With respect to VSS.
0.3 to +6.0
V
VI Input Voltage
VSS 0.3 VI VDD +0.3
V
VO Output voltage
VSS VO VDD
V
pd Power dissipation
Ta = +25
+300
mW
Ptot Operating temperature
20 to + 70
Tstg Storage temperature
40 to + 125



Description

The M35052-XXXSP/FP is TV screen display control IC which can e used to display information such as number of channels, the date nd messages and program schedules on the TV screen.

In particular, owing to the built-in SYNC-SEP (synchronous separation) circuit, the synchronous correction circuit, the Decoder circuit, nd to the Encoder circuit, external circuits of M35052-XXXSP/FP can be decrease and haracter turbulence that occurs when superimposing can be reduced. The processor can conform to the EDS broadcast service and M35052-XXXSP/FP is suitable or AV systems such as VTRs, LDs, and so on.

It is a silicon gate CMOS process and M35052-XXXSP is housed in  20-pin shrink DIP package, M35052-XXXFP is housed in a 20-pin hrink SOP package.

For M35052-001SP/FP that is a standard ROM version of M35052- XXSP/FP respectively, the character pattern is also mentioned.
