Features:

`HW AND SW COMPATIBLE WITH M116
`1 TO 64 SERIAL CHANNELS PER FRAME (CONTROLLED BY SYNC SIGNAL PERIOD)
`29 MAXIMUM CONFERENCES
`1 TO 64 SERIAL CHANNELS PER CONFERENCES
`3 SIMULTANEOUS OPERATION MODES
   AVAILABLE: CONFERENCE, TRANSPARENT AND TONE GENERATION
`TYPICAL BIT RATES: 1536/1544/2048/4096Kbits/s
`COMPATIBLE WITH ALL KINDS OF PCM FORMAT
`m ANDA LAW (PIN PROGRAMMABLE)
`EQUAL PRIORITY TO EVERY CHANNEL
`ONE FRAME AND ONE CHANNEL DELAY FROM SENDING TO RECEIVING
`OVERFLOWINFORMATION FOR EACH CONFERENCE BY PIN OS (OVERFLOW SIGNALLING) AND ON DATA BUS ON MPU REQUEST
`INSTRUCTION SETCOMPATIBLEWITH M3488
`PROGRAMMABLE INPUT AND OUTPUT ATTENUATION OR GAIN FROM 0 TO 15dB WITH STEP OF 1dB FOR EACH CHANNEL TONE GENERATION FROM 3.9Hz TO 3938Hz WITH MIN. STEP OF 3.9Hz
`TOTAL OF 7 DIFFERENT TONE OUTPUTS IN PARALLEL PROGRAMMABLE VIA MPU (MAXIMUM 4 DIFFERENT FREQUENCIES AND DURATIONS)
`1 MELODY OF MAXIMUM 32 PROGRAMMABLE FREQUENCIES AND DURATIONS
`5V POWER SUPPLY
`TTL COMPATIBLE INPUT LEVELS, CMOS/TTL COMPATIBLE OUTPUT LEVELS
`MAIN INSTRUCTIONS CONTROLLED BY MICROPROCESSOR INTERFACE:
   Channel connection to a conference
   Channel attenuation or gain
   Channel disconnection from both conference and transparent modes
   Tone and melody generation
   Overflow status
   Operatingmode
   Channel status



Pinout

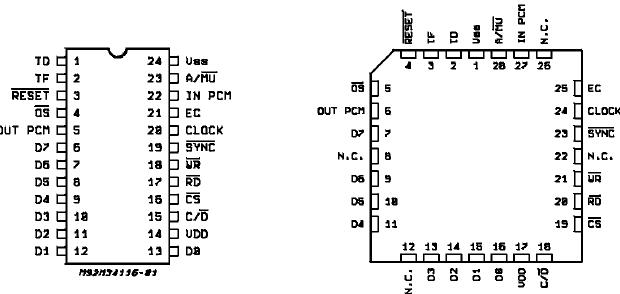

  Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VDD (*) Supply Voltage
0.3 to 7
V
Vi Input Voltage
0.3 to VDD
VO (off) Off State Output Voltage
0.3 to 7
V
Ptot Total Power Dissipation
500
mW
Tstg Storage Temperature
65 to 150
Top Operating Temperature
0 to 70

Stresses above those listed under "Absolute Maximum Ratings" may causes permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.



Description

The M34116 is a product specifically designed for applications in PCM digital exchanges. M34116 is able to handle up to 64 channels in any conferences combination from 1 to 29 conferences in parallel and to generate seven different tones and one elody.

The M34116 in a conference must previously be allocated through the Digital Switching Matrix (M3488) in a single serial wire at M34116 PCM input (IN PCM pin).

The M34116 is full pin and function compatible with the M116. In addition, it has the capability to generate tone directly coded in PCM.

For the conference function, each channel is converted inside the chip from PCM law to linear law (14 bits). Then M34116 is added to its conference, and the sample of the previous frame is subtracted from the conference.

In this way a new conferencesum signal is generated. The channel output signal M34116 will contain the information of all the other channels in its conference except its own.

After the PCM encoding, the data of M34116 is serialized by the M34116 in the same sequence as the PCM input frame, with one frame (plus one channel) delay and will be reallocated by the DSM (M3488) at the final channel and bus position.

A programmable attenuation or gain of M34116 can be set on each channel and for every function: conference, tone generation and transparentmode.
