Product Details

Description



Application

Audio, cameras, TV, home appliance, office/communications/portable/industrial equipment, etc.

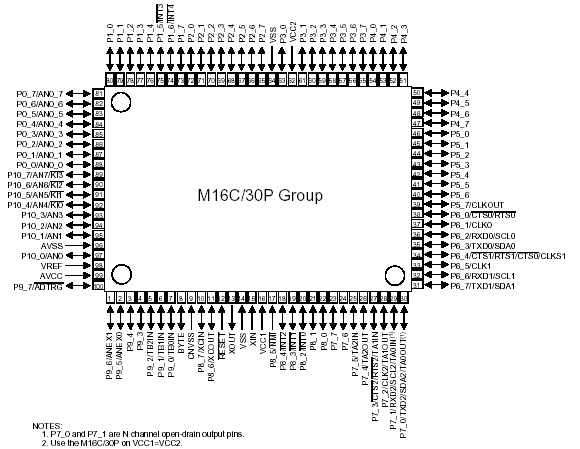

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Condition
Rated Value
Unit
VCC
 Supply Voltage(VCC1=VCC2)
VCC1=VCC2=AVCC
−0.3 to 6.5
V
AVCC
 Analog Supply Voltage
VCC1=VCC2=AVCC
−0.3 to 6.5
V
VI
 Input voltage RESET, CNVSS, BYTE,
P0_0 to P0_7, P1_0 to P1_7, P2_0 to P2_7,
P3_0 to P3_7, P4_0 to P4_7, P5_0 to P5_7,
P6_0 to P6_7, P7_2 to P7_7, P8_0 to P8_7,
P9_0 to P9_7, P10_0 to P10_7,
VREF, XIN
−0.3 to VCC+0.3
V
P7_0, P7_1
−0.3 to 6.5
V
VO
 Output voltage P0_0 to P0_7, P1_0 to P1_7, P2_0 to P2_7,
P3_0 to P3_7, P4_0 to P4_7, P5_0 to P5_7,
P6_0 to P6_7, P7_2 to P7_7, P8_0 to P8_4,
P8_6, P8_7, P9_0 to P9_7, P10_0 to P10_7,
XOUT
−0.3 to VCC+0.3
V
P7_0, P7_1
Pd
 Power Dissipation
−40<Topr85
300
mW
Topr
 Operating
Ambient
Temperature		 When the Microcomputer is Operating
−20 to 85/−40 to 85
Tstg
 Storage temperature range
−65 to 150




Description

The M30P Group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP.

These single-chip microcomputers M30P operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/ logic operations.
