M306V0EEFP

Features: • Memory size ........................................<ROM>192K bytes <RAM> 5K bytes <OSD ROM> 44K bytes <OSD RAM> 1.7K bytes• Shortest instruction execution time ...... 100 ns (f(XIN)=10 MHz)• Power sourse voltage .......................... 4.5 ...

product image

M306V0EEFP Picture
See larger image
SeekIC No. : 004404662 Detail

M306V0EEFP: Features: • Memory size ........................................<ROM>192K bytes <RAM> 5K bytes <OSD ROM> 44K bytes <OSD RAM> 1.7K bytes• Shortest instruction exec...

M306V0EEFP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M306V0EEFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Memory size ........................................<ROM>192K bytes
                                                               <RAM> 5K bytes
                                                               <OSD ROM> 44K bytes
                                                               <OSD RAM> 1.7K bytes
• Shortest instruction execution time ...... 100 ns (f(XIN)=10 MHz)
• Power sourse voltage .......................... 4.5 V to 5.5V
• Power consumption .............................250 mW
• Interrupts .............................................. 20 internal and 3 external interrupt sources, 4 software
                                                                   interrupt sources; 7 levels
• Multifunction 16-bit timer ...................... 2 output timers + 3 input timers + 3 timers
• Serial I/O .............................................. 2 unit
                                                                  UART/clock synchronous: 1
                                                                  UART/clock synchronous/simple I2C-BUS interface (2 systems): 1
• DMAC .................................................. 2 channels (trigger: 21 sources)
• A-D converter ....................................... 8 bits 5 6 channels
• D-A converter ....................................... 8 bits 5 2 channels
• Data slicer ............................................ 1 circuit
• HSYNC counter ..................................... 1 circuit (2 systems)
• OSD function ....................................... 1 circuit
• Watchdog timer.................................... 1 circuit
• Programmable I/O ............................... 78 lines
• Memory expansion .............................. Available
• Chip select output ................................ 4 lines
• Clock generating circuit ....................... 3 built-in clock generation circuits


Application

* TV with a closed caption decoder


Pinout

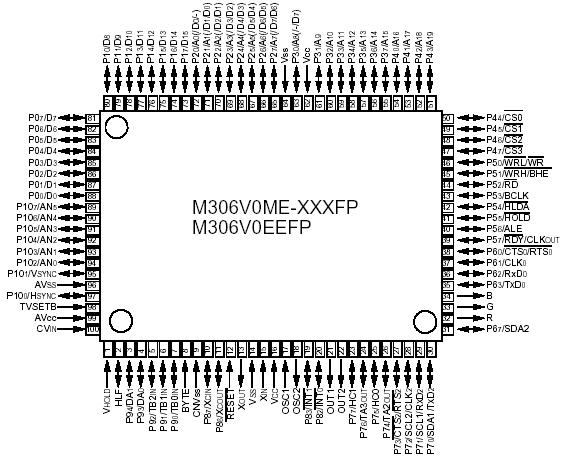

Connection Diagram


Description

The M306V0ME-XXXFP and M306V0EEFP are single-chip microcomputers using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in OSD display function and data slicer, making them ideal for controlling TV with a closed caption decoder.

The features of the M306V0EEFP are similar to those of the M306V0ME-XXXFP except that this chip has a built-in PROM which can be written electrically.
