Features: • Memory capacity..................................ROM (See Figure 1.1.3. ROM Expansion) AM 10K to 20K bytes
• Shortest instruction execution time ......100ns (f(XIN)=10MHZ, VCC=2.7V to 3.6V) 42.9ns (f(XIN)=7MHZ, VCC=2.2V to 3.6V, with software one-wait)
• Supply voltage .....................................2.7V to 3.6V (f(XIN)=10MHZ, without software wait) .4V to 2.7V (f(XIN)= 7MHZ, without software wait) .2V to 2.4V (f(XIN)= 7MHZ, with software one-wait)
• Low power consumption ......................28.5mW ( f(XIN)=10MHZ, with software one-wait, VCC = 3V)
• Interrupts .............................................. 25 internal and 5 external interrupt sources, 4 software nterrupt sources; 7 levels (including key input interrupt)
• Multifunction 16-bit timer ...................... 5 output timers + 6 input timers (3 for timer function only)
• Serial I/O .............................................. 5 channels (2 for UART or clock synchronous, 1 for UART, 2 for clock synchronous)
• DMAC ..................................................2 channels (trigger: 24 sources)
• A-D converter.......................................10 bits X 8 channels (Expandable up to 10 channels)
• D-A converter....................................... 8 bits X 2 channels
• CRC calculation circuit ......................... 1 circuit
• Watchdog timer.................................... 1 line
• Programmable I/O ...............................70 lines
• Input port ..............................................1 line (P85 shared with NMI pin)
• Clock generating circuit ....................... 2 built-in clock generation circuits built-in feedback resistor, and external ceramic or quartz oscillator)
Note: Memory expansion mode and microprocessor mode are not supported.

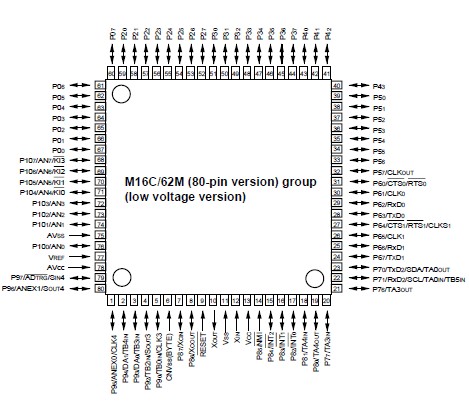

Application•Audio, cameras, office equipment, communications equipment, portable equipmentPinout
Specifications
| Symbol |
Parameter |
Condition |
Rated value |
Unit |
| Vcc |
Supply voltage |
VCC=AVCC |
-0.3 to 4.6 |
V |
| AVcc |
Analog supply voltage |
VCC=AVCC |
-0.3 to 4.6 |
V |
| VI |
Input
voltage |
RESET, CNVSS (BYTE)
P00 to P07, P20 to P27,
P30 to P37, P40 to P43, P50 to P57,
P60 to P67, P76 to P77, P80 to P87,
P90, P92 to P97, P100 to P107,
VREF, XIN
|
|
-0.3 to Vcc+0.3 |
V |
| P70, P71 |
|
-0.3 to 4.6 |
V |
| VO |
Output
voltage |
P00 to P07, P20 to P27,
P30 to P37,P40 to P43, P50 to P57,
P60 to P67,P76 to P77, P80 to P84,
P86, P87, P90, P92 to P97,
P100 to P107, XOUT |
|
-0.3 to Vcc+0.3 |
V |
| P70, P71 |
|
-0.3 to 4.6 |
V |
| Pd |
Power dissipation |
Ta=25 |
300 |
mW |
| Topr |
Operating ambient temperature |
|
-20 to 85 / -40 to 5(Note) |
|
| Tstg |
Storage temperature |
|
-65 to 150 |
|
Note: Specify a product of -40 to 85°C to use it.DescriptionThe M30621FGMGP (80-pin version) group (low voltage version) of single-chip microcomputers are built using he high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in 80-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions eaturing a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing nstructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for ontrolling office, communications, industrial equipment, and other high-speed processing applications.
The M30621FGMGP (80-pin version) group (low voltage version) includes a wide range of products with different nternal memory types and sizes and various package types.
M30621FGMGP Data Sheet
