M30240

Features: • CPU .................................................... 16-bit (including a hardware multiplier)• Number of instructions ........................91• Shortest instruction execution time .....83ns f(XIN)=12MHz• USB Features:..................................... F...

product image

M30240 Picture
See larger image
SeekIC No. : 004404540 Detail

M30240: Features: • CPU .................................................... 16-bit (including a hardware multiplier)• Number of instructions ........................91• Shortest instructi...

M30240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M30240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CPU .................................................... 16-bit (including a hardware multiplier)
• Number of instructions ........................91
• Shortest instruction execution time .....83ns f(XIN)=12MHz
• USB Features:..................................... Five endpoint pairs (IN/OUT)
                                                               FIFO Sizes (endpoints 0-4):32,128, 32, 32, 32

• USB Transceiver ................................Conforms to USB V1.1 Specification-Internal Vref
• Frequency Synthesizer.......................PLL for 48MHz clock
• Memory capacity (mask device):.........ROM (40K, 48K) / RAM (3.0 K)
• Memory capacity (OTP device):.......... PROM (128K) / RAM (5K)
• Supply Voltage ...................................4.1 to 5.25V f(XIN)=12MHz)
• Interrupts............................................21 internal and 4 external interrupt sources,
                                                               4 software interrupt sources; 7 levels (including key input interrupt X 16)
• Multifunction timer ...............................5 X 16-bit, w/integrated 20mA (peak) PWM outputs
• General purpose timer ........................3 X 16-bit, internal interrupt only
• UART................................................... 3 X 7/8/9 bits;
                                                                 Configurable for synchronous or asynchronous mode
• DMAC.................................................. 2 channels (trigger: 18 sources)
• A-D Converter .....................................10 bits X 8 channels
• CRC calculation circuit ........................ 1 circuit (industry standard polynomial)
• Watchdog timer ...................................1 line (15 bit)
• Programmable I/O............................... 63 lines
• High current and LED Drivers ............. 5 high current and 8 LED drivers
• Clock-generating circuit....................... 1 built-in circuit including feedback resistor
• Package: ............................................. 80P6N (0.8 mm pitch)


Application

USB peripherals, such as telephones, audio systems, scanners, and digital cameras.


Pinout

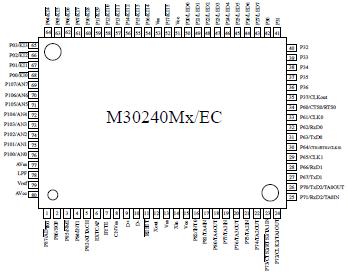

Connection Diagram


Specifications



Symbol
Parameter
 Condition
Rated Value
Unit
VCC Supply Voltage
VCC=AVCC
-0.3 to 6.5
V
AVCC Supply Voltage for Output
VCC=AVCC
-0.3 to 6.5
V
VI Input Voltage Port0, Port1, Port2, Port3, Port6,
Port7, Port8, Port10, RESET, VREF,
XIN
-0.3 to Vcc+0.3
V
VI Input Voltage Port0, Port1, Port2, Port3, Port6,
Port7, Port8 (except P85),
Port10, RESET, VREF, XIN
-0.3 to 6.5(Note 1)
V
VO Output Current

-0.3 to Vcc+0.3

V

Pd Power Dissipation
Ta=25
760
mW
Topr Operating ambient temperature
0 to 70
Tstg Storage Temperature
-65 to 150

Note 1: When writing to EPROM, CNVss rated value is -0.3 to 13 volts





Description

The M30240 group is a 16-bit microcomputer based on the M16C family core technology. They are ingle-chip USB peripheral microcontrollers based on the Universal Serial Bus (USB) Version 1.1 pecification. They are packaged in an 80-pin, molded plastic QFP. These single-chip microcontrollers perate using sophisticated instructions featuring a high level of instruction efficiency, making them apable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, aking them ideal for controlling office communications, industrial equipment, and other high-speed rocessing applications.
