M30222

Features: • Memory capacity .........................................Flash ROM 260 Kbytes...................................................................... RAM 20 Kbytes• Shortest instruction execution time ........... 62.5ns (f(XIN)=16MHZ)• Supply voltage ......................

product image

M30222 Picture
See larger image
SeekIC No. : 004404539 Detail

M30222: Features: • Memory capacity .........................................Flash ROM 260 Kbytes...................................................................... RAM 20 Kbytes• Shortest in...

M30222 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M30222
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Memory capacity .........................................Flash ROM 260 Kbytes
...................................................................... RAM 20 Kbytes
• Shortest instruction execution time ........... 62.5ns (f(XIN)=16MHZ)
• Supply voltage ............................................2.7 to 5.5V
• Low power consumption ............................ TBD
• Interrupts ...................................................25 internal and 8 external interrupt sources
                                                                       4 software interrupt sources
                                                                       7 levels (including key input interrupt)
• Multifunction 16-bit timer ............................5 output timers, 6 input timers, three phase motor control, real-time port
• Serial I/O .....................................................5 channel
                                                                       3 for UART or clock synchronous (1 channel for I2C or SPI)
                                                                       2 for clock synchronous
• DMAC........................................................... 2 channels (trigger: 24 sources)
• A-D converter ..............................................10 bits X 8 channels (expandable up to 10 channels)
• D-A converter .............................................. 8 bits X 2 channels
• CRC calculation circuit ................................. 1 circuit
• Watchdog timer ............................................1 timer
• Key-on Wake up ...........................................8 inputs
• Programmable I/O ........................................54 lines
• Input port ....................................................1 line (P83 shared with NMI pin)
• Clock generating circuit ............................... 2 built-in clock generation circuits
                                                                         (built-in feedback resistor, and external ceramic or quartz oscillator)
•LCD Drive ......................................................1/2, 1/3 bias
                                                                        4 common outputs
                                                                        40 segment outputs
                                                                         Built-in charge pump
                                                                         /2, 1/3, 1/4 duty
                                                                         Expansion CLK output
                                                                         Static/direct drive mode


Application

Audio, cameras, office, industrial, communications and, portable equipment


Pinout

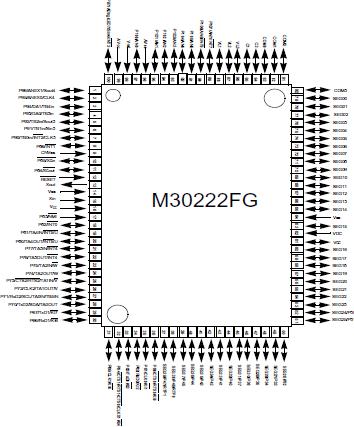

Connection Diagram


Specifications



Symbol
Parameter
Condition
Rated Value
Unit
VCC Supply Voltage
VCC=AVCC
-0.3 to 6.5
V
AVCC Supply Voltage for Output
VCC=AVCC
-0.3 to 6.5
V
VI Input Voltage RESET, , P30 to P37, P40 to P47,
P60 to P67, P72 to P77, P80 to P86,
P90 to P97, P100 to P107, Vref,
Xin, CNVss (mask ROM version)
-0.3 to Vcc+0.3
V
VL1
0.3 to Vcc+0.3
V
VL2
VL1 to VL3
V
VL3
VL2 to 6.5
V
P70, P71, C1, C2, CNVss (flash
memory version)
0.3 to 6.5
V
VO Output Current P60 to P67, P72 to P77, P80 to P82,
P84 to P86, P90 to P97, Xout,
0.3 to Vcc+0.3
V
V
V
P30 to P37, P40 to P47
When output port
0.3 to Vcc
V
When segment output
0.3 to VL3
V
P70, P71, CNVss (mask ROM version)
-0.3 to 6.5
V
Pd Power Dissipation
Ta=25
300
mW
Topr Operating ambient temperature
-40 to 85
Tstg Storage Temperature
-65 to 150





Description

The M30222 single-chip microcomputers are built using the high-performance silicon gate CMOS process sing a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip icrocomputers M30222 operate using sophisticated instructions featuring a high-level of instruction efficiency and re capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, aking them ideal for controlling office, communications, industrial equipment, and other high-speed processing
applications.
