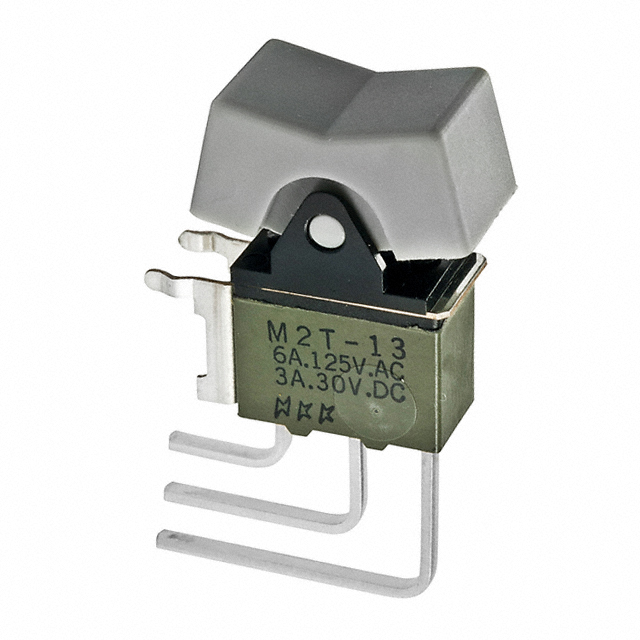

M2T13TXW41-DH: SWITCH ROCKER SPDT 6A 125V

M2T13TXW41-DH Data Sheet

US $ 3.71~3.71 / Piece | Get Latest Price

Part Number:: M2T13TXW41-DH
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$3.71

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

M2T12S4A5A03 evaluate
US $2.11 - 2.38 / Piece

Toggle Switches ON-ON .3 BAT PC MNT .4VA & 6A PROCES SLD
M2T12S4A5A30 evaluate
US $2.19 - 2.72 / Piece

Toggle Switches ON-ON .300 BAT RIGHT ANGLE PC 6A & .4VA
M2T12S4A5G03 evaluate
US $2.33 - 2.54 / Piece

Toggle Switches SPDT ON-ON .300 BAT STRAIGHT PC .4VA

Product Details

Quick Details

Series:	M2	Manufacturer:	NKK Switches
Data Rate :	3000 Mbps	Circuit:	SPDT
Switch Function:	On-Off-On	Current Rating:	6A (AC), 3A (DC)
Voltage Rating - AC:	125V	Voltage Rating - DC:	30V
Actuator Style:	Concave (Standard V)	Color - Actuator/Cap:	Gray
Actuator Marking:	No Marking	Illumination Type, Color:	-
Illumination Voltage (Nominal):	-	Mounting Type:	Through Hole, Right Angle, Vertical
Termination Style:	PC Pin	Ingress Protection:	-
Features:	Process Sealed	Panel Cutout Dimensions:	-

Description

Voltage Rating - AC: 125V
Actuator Marking: No Marking
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Packaging: Bulk
Ingress Protection: -
Circuit: SPDT
Actuator Style: Concave (Standard V)
Termination Style: PC Pin
Panel Cutout Dimensions: -
Mounting Type: Through Hole, Right Angle, Vertical
Switch Function: On-Off-On
Manufacturer: NKK Switches
Voltage Rating - DC: 30V
Current Rating: 6A (AC), 3A (DC)
Color - Actuator/Cap: Gray
Series: M2
Features: Process Sealed

Parameters:

Technical/Catalog Information	M2T13TXW41-DH
Vendor	NKK Switches of America Inc
Category	Switches
Mounting Type	PCB, Through Hole, Vertical Right Angle
Circuit	SPDT
Switch Function	On-Off-On
Contact Rating @ Voltage	6A @ 125VAC
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Termination Style	PC Pin
Panel Cutout Dimensions	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	M2T13TXW41 DH M2T13TXW41DH
