Features: `Supply Voltage
VCC = 2.7V to 3.6V for Program, Erase and Read
VCCQ= 1.65V to 3.6V for Input/Output
VPP =12V for Fast Program (optional)
`ASYNCHRONOUS RANDOM/PAGE READ
Page Width: 8 Words
Page Access: 25, 30ns
Random Access: 60, 70ns
`PROGRAMMING TIME
10µs per Byte/Word typical
4 Words / 8 Bytes Program
32-Word Write Buffer
`ERASE VERIFY
`MEMORY BLOCKS
Quadruple Bank Memory Array: 16Mbit+48Mbit+48Mbit+16Mbit
Parameter Blocks (at Top and Bottom)
`DUAL OPERATIONS
While Program or Erase in one bank, Read in any of the other banks
`PROGRAM/ ERASE SUSPEND and RESUME MODES
Read from any Block during Program Suspend
Read and Program another Block during Erase Suspend
`UNLOCK BYPASS PROGRAM
Faster Production/Batch Programming
`COMMON FLASH INTERFACE
64 bit Security Code
`100,000 PROGRAM/ERASE CYCLES per BLOCK
`LOW POWER CONSUMPTION
Standby and Automatic Standby
`HARDWARE BLOCK PROTECTION
VPP/WP Pin for fast program and write protect of the four outermost parameter blocks
`SECURITY FEATURES
Standard Protection
Password Protection
`EXTENDED MEMORY BLOCK
Extra block used as security block or to store additional information
`ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Device Code: 227Eh + 2220h + 2200h

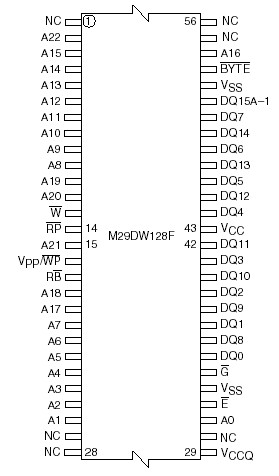

`ECOPACK® PACKAGES AVAILABLEPinoutSpecifications
Symbol |
Parameter |
Min |
Max |
Unit |
TBIAS |
Temperature Under Bias |
50 |
125 |
|
TSTG |
Storage Temperature |
65 |
150 |
|
VIO |
Input or Output Voltage(1)(2) |
0.6 |
VCC +0.6 |
V |
VCC |
Supply Voltage |
0.6 |
4 |
V |
VCCQ |
Input/Output Supply Voltage |
0.6 |
4 |
V |
VID |
Identification Voltage |
0.6 |
13.5 |
V |
VPP(3) |
Program Voltage |
0.6 |
13.5 |
V |
DescriptionThe M29DW128F is a 128 Mbit (16Mb x8 or 8Mb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. VCCQ is an additional voltage supply that allows to drive the I/O pins down to 1.65V. At Power-up the memory defaults to its Read mode.
The M29DW128F features an asymmetrical block architecture, with 16 parameter and 254 main blocks, divided into four Banks, A, B, C and D, providing multiple Bank operations. While programming or erasing in one bank, read operations are possible in any other bank. The bank architecture is summarized in Table 2. Eight of the Parameter Blocks are at the top of the memory address space, and eight are at the bottom.
Program and Erase commands M29DW128F are written to the Command Interface of the memory. An onchip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are required to update the memory contents. The end of a program or erase operation can be detected and any error conditions identified. The command set required to control the memory M29DW128F is consistent with JEDEC standards. The Chip Enable, Output Enable and Write Enable signals control the bus operations of the memory. They allow simple connection to most microprocessors, often without additional logic. The device supports Asynchronous Random Read and Page Read from all blocks of the memory array.
The M29DW128F has one extra 256 Byte block (Extended Block) that can be accessed using a dedicated command. The Extended Block can be protected and so is useful for storing security information. However the protection is irreversible, once protected the protection cannot be undone.
