M28256

Features: `FASTACCESSTIME: 90ns at 5V 120ns at 3V`SINGLE SUPPLY VOLTAGE: 5V± 10% for M28256 2.7V to 3.6V for M28256-xxW`LOWPOWER CONSUMPTION`FAST WRITE CYCLE: 64 Bytes Page Write Operation Byte or Page Write Cycle`ENHANCED END of WRITEDETECTION: Data Polling Toggle Bit`STATUS REGISTER`HIGH ...

product image

M28256 Picture
See larger image
SeekIC No. : 004404277 Detail

M28256: Features: `FASTACCESSTIME: 90ns at 5V 120ns at 3V`SINGLE SUPPLY VOLTAGE: 5V± 10% for M28256 2.7V to 3.6V for M28256-xxW`LOWPOWER CONSUMPTION`FAST WRITE CYCLE: 64 Bytes Page Write Operation Byte...

M28256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M28256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`FASTACCESSTIME:
   90ns at 5V
   120ns at 3V
`SINGLE SUPPLY VOLTAGE:
   5V± 10% for M28256
   2.7V to 3.6V for M28256-xxW
`LOWPOWER CONSUMPTION
`FAST WRITE CYCLE:
    64 Bytes Page Write Operation
   Byte or Page Write Cycle
`ENHANCED END of WRITEDETECTION:
   Data Polling
   Toggle Bit
`STATUS REGISTER
`HIGH RELIABILITYDOUBLE POLYSILICON, CMOS TECHNOLOGY:
   Endurance >100,000 Erase/Write Cycles
   Data Retention >10 Years
`JEDEC APPROVEDBYTEWIDE PIN OUT
`ADDRESS and DATA LATCHED ON-CHIP
`SOFTWAREDATA PROTECTION

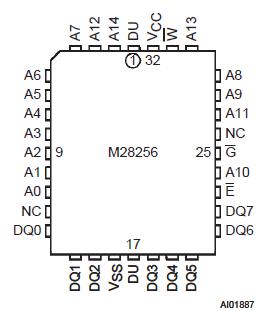

Pinout

Connection Diagram


Specifications



Symbol
Parameter
Value
Unit
TA Ambient Operating Temperature (2)
40 to 85
TSTG Storage Temperature Range
65 to 150
VCC Supply Voltage
0.3 to 6.5
V
VIO Input/Output Voltage 0.3 to VCC +0.6
V
VI Input Voltage
0.3 to 65
V
VESD Electrostatic Discharge Voltage (Human Body model) (3)
4000
 V

Notes: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "AbsoluteMaximum Ratings" may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.
2. Depends on range.
3. 100pF through 1500W; MIL-STD-883C, 3015.7




Description

The M28256and M28256-Ware 32K x8 low power ParallelEEPROMfabricatedwith STMicroelectronics proprietary double polysilicon CMOS technology.
