M28010

Features: `Fast Access Time: 100 ns` Single Supply Voltage: 4.5 V to 5.5 V for M28010 2.7 V to 3.6 V for M28010-W 1.8 V to 2.4 V for M28010-R` Low Power Consumption` Fast BYTE and PAGE WRITE (up to 128 Bytes)` Enhanced Write Detection and Monitoring: Data Polling Toggle Bit Page Load Timer S...

product image

M28010 Picture
See larger image
SeekIC No. : 004404275 Detail

M28010: Features: `Fast Access Time: 100 ns` Single Supply Voltage: 4.5 V to 5.5 V for M28010 2.7 V to 3.6 V for M28010-W 1.8 V to 2.4 V for M28010-R` Low Power Consumption` Fast BYTE and PAGE WRITE (up ...

M28010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M28010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Fast Access Time: 100 ns
` Single Supply Voltage:
   4.5 V to 5.5 V for M28010
   2.7 V to 3.6 V for M28010-W
   1.8 V to 2.4 V for M28010-R
` Low Power Consumption
` Fast BYTE and PAGE WRITE (up to 128 Bytes)
` Enhanced Write Detection and Monitoring:
   Data Polling
   Toggle Bit
   Page Load Timer Status
` JEDEC Approved Bytewide Pin-Out
` Software Data Protection
` Hardware Data Protection
` Software Chip Erase
`100000 Erase/Write Cycles (minimum)
` Data Retention (minimum): 10 Years

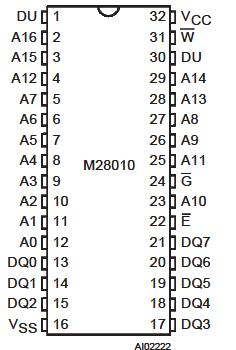

Pinout

Connection Diagram


Specifications



Symbol
Parameter
Value
Unit
TA Ambient Operating Temperature
40 to 85
TSTG Storage Temperature
65 to 150
VCC Supply Voltage
0.3 to VCCMAX+1
V
VIO Input/Output Voltage
0.3 to VCC+0.6
V
VI Input Voltage
0.3 to 4.5
V
VESD Electrostatic Discharge Voltage (Human Body model) (3)
2000
V

Note: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the ST SURE Program and other relevant quality documents.
2. MIL-STD-883C, 3015.7 (100 pF, 1500 )





Description

The M28010 devices consist of 128Kx8 bits of low power, parallel EEPROM, fabricated with STMicroelectronics' proprietary double polysilicon CMOS technology. The devices offer fast access time, with low power dissipation, and require a single voltage supply (5V, 3V or 2V, depending on the option chosen).
