M27W101

Features: 2.7V to 3.6V LOW VOLTAGE in READ OPERATIONACCESS TIME:70ns at VCC=3.0V to 3.6V80ns at VCC=2.7V to 3.6VPIN COMPATIBLE with M27C1001LOW POWER CONSUMPTION:ActiveCurrent15mAat5MHzStandbyCurrent15µAPROGRAMMING TIME 100µs/byteHIGH RELIABILITY CMOS TECHNOLOGY2,000V ESD Protection200...

product image

M27W101 Picture
See larger image
SeekIC No. : 004404257 Detail

M27W101: Features: 2.7V to 3.6V LOW VOLTAGE in READ OPERATIONACCESS TIME:70ns at VCC=3.0V to 3.6V80ns at VCC=2.7V to 3.6VPIN COMPATIBLE with M27C1001LOW POWER CONSUMPTION:ActiveCurrent15mAat5MHzStandbyCurren...

M27W101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M27W101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2.7V to 3.6V LOW VOLTAGE in READ OPERATION
ACCESS TIME:
70ns at VCC=3.0V to 3.6V
80ns at VCC=2.7V to 3.6V
PIN COMPATIBLE with M27C1001
LOW POWER CONSUMPTION:
ActiveCurrent15mAat5MHz
StandbyCurrent15µA
PROGRAMMING TIME 100µs/byte
HIGH RELIABILITY CMOS TECHNOLOGY
2,000V ESD Protection
200mA Latchup Protection Immunity
ELECTRONIC SIGNATURE
Manufacturer Code:20h
Device Code:05h


Pinout

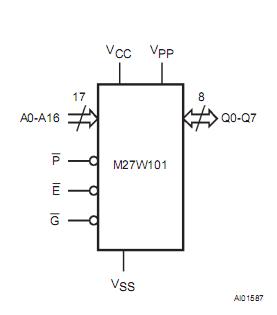

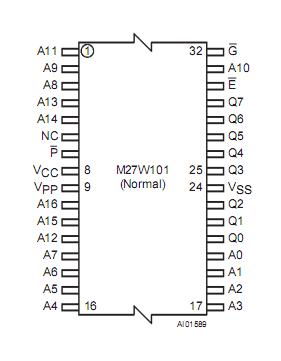

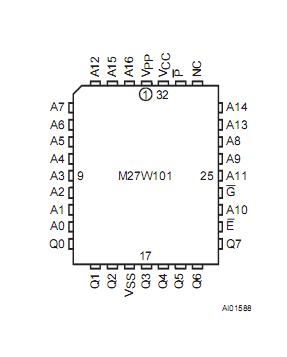

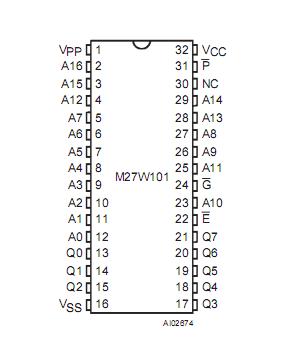

Connection Diagram Connection Diagram Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
TA AmbientOperatingTemperature(3) 40 to 85 °C
TBIAS TemperatureUnderBias 50 to 125 °C
TSTG StorageTemperature 65 to 150 °C
VIO(2) InputorOutputVoltage(exceptA9) 2 to 7 V
VCC SupplyVoltage 2 to 7 V
VA9(2) A9Voltage 2 to 13.5 V
VPP ProgramSupplyVoltage 2 to 14 V



Description

The M27W101 is a low voltage 1 Mbit EPROM of-fered in two range UV (ultravioleterase) and OTP  (onetimeprogrammable). It is ideally suited for mi-croprocessor systems requiring large data or pro-gram storage and is organized as 131,072 by 8 bits.


The M27W101 operates in the read mode with a supply voltage as low as 2.7V at40 to 85°C tem-perature range.


The decrease in operating powe allows either a reduction of the size of the battery or an increase in the time between battery recharges.


The FDIP32W (window ceramic frit-seal package) has a transparent lid which allows the user toex-pose the chip to ultraviolet light to erase the bit pat-tern.A new pattern can then be written to the device by following the programming procedure.For application where the content is programmed only one time and erasure is not required,the M27W101 is offered in PDIP32,PLCC32and TSOP32 (8x20mm) packages.
