M27V800

PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature (3) 40 to 125 °C TBIAS Temperature Under Bias 50 to 125 °C TSTG Storage Temperature 65 to 150 °C VIO(2) Input or Output Voltage (except A9) 2 to 7 V ...

product image

M27V800 Picture
See larger image
SeekIC No. : 004404252 Detail

M27V800: PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature (3) 40 to 125 °C TBIAS Temperature Under Bias 50 to 125 °C TSTG Stora...

M27V800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M27V800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

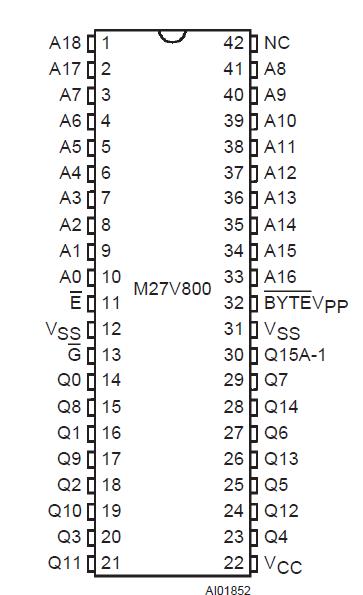

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature (3)
40 to 125
°C
TBIAS
 Temperature Under Bias
50 to 125
°C
TSTG
 Storage Temperature
65 to 150
°C
VIO(2)
 Input or Output Voltage (except A9)
2 to 7
V
VCC
 Supply Voltage
2to 7
V
VA9(2)
 A9 Voltage
2 to 13.5
V
VPP
Program Supply Voltage
2 to 14
V



Description

The M27V800 is a low voltage 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as either 1 Mbit words of 8 bit or 512 Kbit words of 16 bit. The pinout is compatible with a 8 Mbit Mask ROM.
