M27V401

PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature (3) 40 to 125 °C TBIAS Temperature Under Bias 50 to 125 °C TSTG Storage Temperature 65 to 150 °C VIO(2) Input or Output Voltage (except A9) 2 to 7 V ...

product image

M27V401 Picture
See larger image
SeekIC No. : 004404248 Detail

M27V401: PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature (3) 40 to 125 °C TBIAS Temperature Under Bias 50 to 125 °C TSTG Stora...

M27V401 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M27V401
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

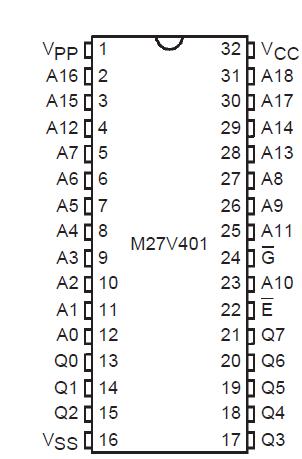

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature (3)
40 to 125
°C
TBIAS
 Temperature Under Bias
50 to 125
°C
TSTG
 Storage Temperature
65 to 150
°C
VIO(2)
 Input or Output Voltage (except A9)
2 to 7
V
VCC
 Supply Voltage
2to 7
V
VA9(2)
 A9 Voltage
2 to 13.5
V
VPP
Program Supply Voltage
2 to 14
V



Description

The M27V401 is a low voltage 4 Mbit EPROM offered in the two range UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organised as 524,288 by 8 bits.

The M27V401 operates in the read mode with a supply voltage as low as 3V. The decrease in operating power allows either a reduction of the size of the battery or an increase in the time between battery recharges.

The M27V401 (window ceramic frit-seal package) has a transparent lid which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
