SeekIC No. : 004174276 Detail

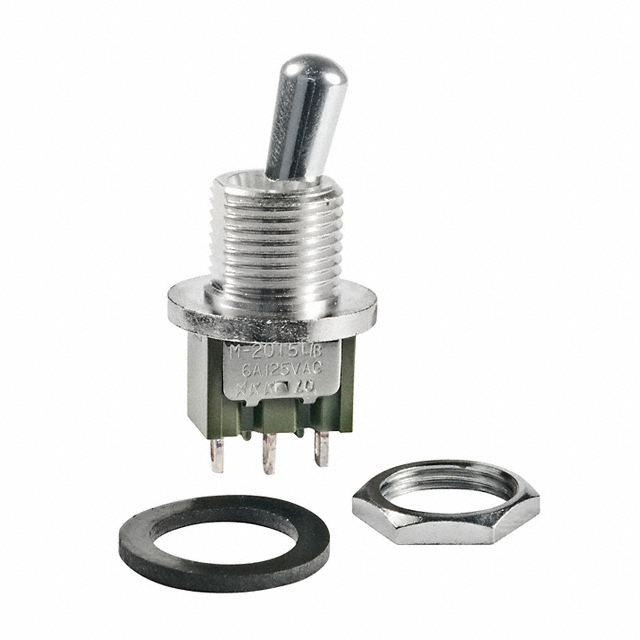

M2015BB3W01: SW TOGGLE SPDT THR SILV .250"PC

M2015BB3W01 Data Sheet

US $ 2.5~4.61 / Piece | Get Latest Price

Part Number:: M2015BB3W01
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250
250~500
500~1000
1000~5000

Unit Price
$4.61
$4.42
$3.84
$3.65
$3.26
$3.07
$2.69
$2.5

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

M201 evaluate
US $1.93 - 2.27 / Piece

Enclosures, Boxes, & Cases 8-1/4x4-1/2x1-3/8 (0.791cf)12Cmprtmnts
M2010K10R0FBT evaluate
US $1.14 - 2.7 / Piece

Thick Film Resistors - SMD 10 OHM 1%
M2010K1300FBT evaluate
US $2.29 - 5.44 / Piece

Thick Film Resistors - SMD 130 OHM 1%

Product Details

Quick Details

Series:	M	Manufacturer:	NKK Switches
Operating Supply Voltage :	8 V	Circuit:	SPDT
Switch Function:	On-Mom	Contact Rating @ Voltage:	6A @ 125VAC
Actuator Type:	Standard Round	Actuator Length:	11.50mm
Illumination:	Non-Illuminated	Mounting Type:	Panel Mount
Termination Style:	Solder Lug	Bushing Thread:	M12 x 1

Description

Circuit: SPDT
Actuator Type: Standard Round
Illumination: Non-Illuminated
Mounting Type: Panel Mount
Termination Style: Solder Lug
Packaging: Bulk
Switch Function: On-Mom
Contact Rating @ Voltage: 6A @ 125VAC
Actuator Length: 11.50mm
Bushing Thread: M12 x 1
Series: M
Manufacturer: NKK Switches

Parameters:

Technical/Catalog Information	M2015BB3W01
Vendor	NKK Switches of America Inc
Category	Switches
Circuit	SPDT
Switch Function	On-Mom
Mounting Type	Panel Mount
Actuator Length	11.500mm
Actuator Type	Standard Round
Bushing Thread	M12
Contact Rating @ Voltage	6A @ 125VAC
Illumination	Non-Illuminated
Termination Style	Solder Lug
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	M2015BB3W01 M2015BB3W01
