Product Details

Description



Application

 ·Audio, cameras, office/communications/portable/industrial equipment, etc


Pinout

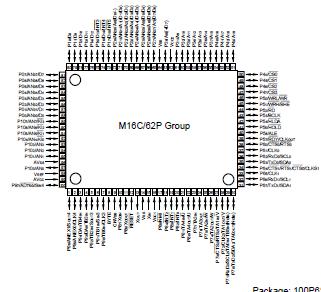

Connection Diagram


Specifications

Symbol Parameter Condition Rated value Unit
VCC1, VCC2 Supply voltage VCC1=AVCC -0.3 to 6.5 V
VCC2 Supply voltage VCC2 -0.3 to VCC1+0.1
AVCC Analog supply voltage VCC1=AVCC -0.3 to 6.5
VI
Input
voltage		 RESET, CNVSS, BYTE,P60 to P67, P72 to P77, P80 to P87,P90 to P97, P100 to P107, P110 to P117,P140, P141,VREF, XIN
   -0.3 to VCC1+0.3
P00 to P07, P10 to P17, P20 to P27,P30 to P37, P40 to P47, P50 to P57,P120 to P127, P130 to P137   -0.3 to VCC2+0.3
P70, P71   -0.3 to 6.5
VO Output
voltage		 P60 to P67, P72 to P77, P80 to P84,P86, P87, P90 to P97, P100 to P107,P110 to P117, P140, P141,XOUT   -0.3 to VCC1+0.3
P00 to P07, P10 to P17, P20 to P27,P30 to P37, P40 to P47, P50 to P57,P120 to P127, P130 to P137   -0.3 to VCC2+0.3
P70, P71   -0.3 to 6.5
Pd Power dissipation Topr=25 C 300 mW
Topr Operating ambient temperature   -20 to 85 / -40 to 85
Tstg Storage temperature   -65 to 150



Description

The M162P group (M16C/62P) of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin and 128-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment M162P which requires high-speed arithmetic/logic operations.
