Features: ` Ideal for high-density, low-power linecard applications` Control states: Active, Reverse Polarity, Tip Open, Ringing, Standby, and Open Circuit` Low standby power (35 mW)` 16 V to 58 V battery operation` On-hook transmission` Two-wire impedance set by single external impedance` Program...
Le79555: Features: ` Ideal for high-density, low-power linecard applications` Control states: Active, Reverse Polarity, Tip Open, Ringing, Standby, and Open Circuit` Low standby power (35 mW)` 16 V to 58 V b...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

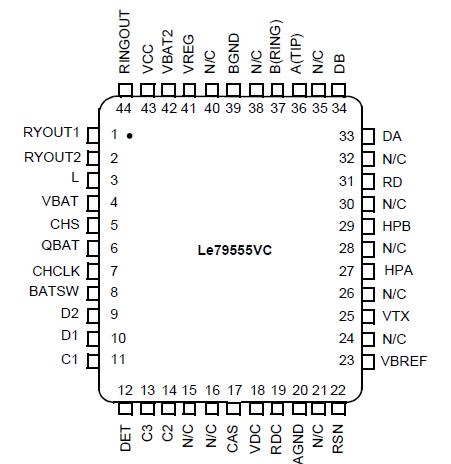

Storage temperature ................ 55°C to +150°C
VCC with respect to AGND......... 0.4 V to +7.0 V
VBAT1, VBAT2 with respect to AGND:
Continuous................................. +0.4 V to 70 V
10 ms ......................................... +0.4 V to 75 V
BGND with respect to AGND.................. +3 V to 3 V
A(TIP) or B(RING) to BGND:
Continuous .......................................VBAT to +1 V
10 ms (f = 0.1 Hz) ......................... 70 V to +5 V
1 s (f = 0.1 Hz) ............................ 80 V to +8 V
250 ns (f = 0.1 Hz) ...................... 90 V to +12 V
Current from A(TIP) or B(RING)..................±150 mA
RINGOUT/RYOUT1,2 current............................50 mA
RINGOUT/RYOUT1,2 voltage .............. BGND to +7 V
RINGOUT/RYOUT1,2 transient .......... BGND to +10 V
DA and DB inputs
Voltage on ring-trip inputs ..................VBAT to 0 V
Current into ring-trip inputs .....................±10 mA
C3C1,D2D1, BATSW, CHCLK
Input voltage .....................0.4 V to VCC + 0.4 V
Maximum power dissipation, continuous,
TA = 70°C, No heat sink (See note)
In 44-pin TQFP package................................1.4 W
Thermal Data:....................................................... JA
In 44-pin TQFP package......................... 52°C/W typ
ESD immunity/pin (HBM) ..................................1500 V
Note: Thermal limiting circuitry on-chip will shut down the circuit at a junction temperature of about 165°C. The device
should never see this temperature and operation above 145°C junction temperature may degrade device reliability.
Stresses above those listed under Absolute Maximum Ratings may cause permanent device failure. Functionality at or above these limits is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability.
