LZOP3820

Features: 1) Number of image pixels : Horizontal 367 x vertical 291 (approximately 110,000 pixels)2) Square pixel, Pixel pitch : Horizontal 5.6m x vertical 5.6m3) Progressive acan4) Compatible with CIF standard5) Primary color filter composed of B. G, B6) AnaIog output and a-bit digital output7) V...

product image

LZOP3820 Picture
See larger image
SeekIC No. : 004403797 Detail

LZOP3820: Features: 1) Number of image pixels : Horizontal 367 x vertical 291 (approximately 110,000 pixels)2) Square pixel, Pixel pitch : Horizontal 5.6m x vertical 5.6m3) Progressive acan4) Compatible with ...

LZOP3820 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LZOP3820
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Number of image pixels : Horizontal 367 x vertical 291 (approximately 110,000 pixels)
2) Square pixel, Pixel pitch : Horizontal 5.6 m x vertical 5.6 m
3) Progressive acan
4) Compatible with CIF standard
5) Primary color filter composed of B. G, B
6) AnaIog output and a-bit digital output
7) Variable electronic shutter (l/30 to l/10,000 s>
8) Variable gain control (3 to 30 dB)
9) Can be operating by DC3.3V single power supply
10) 36-pin half-pitch LCC-type small pakage (Base section size: ll.5mmXll. 5mm max. )
11) pprox. 58" (degrees) of horizontal view angle lens includes.
12) Not designed or rated as radiation hardened




Application

The circuit diagram and others included in this specification are intended for use to explain typical application examples. Therefore, we take no responsibility for any problem as may occur due to the use of the included circuit and for any problem with industrial proprietary rights or other rights.

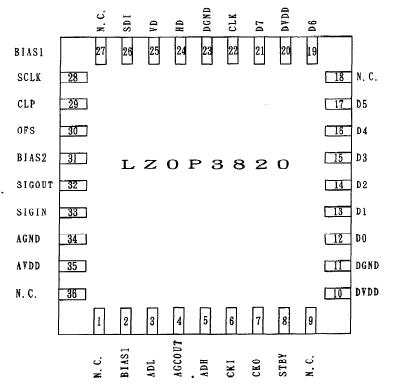

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Wings
Unit
Power supply voltage
VDD
-0.3~ 4.6
V
Input signal voltage
V
-0.3~VDD+0.3
V
Storage temperature
Tstr
-20~70



Description

LZOP3820 is a l/7-type(approx.2.6mm) lens-integrated CMOS image sensor. The sensor further includes a timing generatoer(TG), a correlated double sampling(CDS) circuit, an auto gain control(AGC) circuit and an analog-todigital converter(ADC) circuit. All the circuits of the sensor can be driven by 3.3V single power supply. Having smaI1 lens and small LCC-type flat pakage, possible to make ultra-small color camera easily.
