LZ34B1B

Features: • Progressive scan• Square pixel• Compatible with VGA standard• Number of image pixels : 655 (H) x 493 (V)• Number of optical black pixels Horizontal : 24 front and 24 rear Vertical : 3 front and 3 rear• Pixel pitch : 5.6 m (H) x 5.6 m (V)• R, G,...

product image

LZ34B1B Picture
See larger image
SeekIC No. : 004403785 Detail

LZ34B1B: Features: • Progressive scan• Square pixel• Compatible with VGA standard• Number of image pixels : 655 (H) x 493 (V)• Number of optical black pixels Horizontal : 24 fro...

LZ34B1B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LZ34B1B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Progressive scan
• Square pixel
• Compatible with VGA standard
• Number of image pixels : 655 (H) x 493 (V)
• Number of optical black pixels
Horizontal : 24 front and 24 rear
Vertical : 3 front and 3 rear
• Pixel pitch : 5.6 m (H) x 5.6 m (V)
• R, G, and B primary color mosaic filters
• Image inversion function (horizontally and/or vertically)
• Available for two types of power save mode
AGC and AD circuits become power-off with serial data
All circuits become power-off with STBY pin
• Monitoring mode
• Analog output and 8-bit digital output
• Variable gain control (3 to 30 dB)
• Variable electronic focal plane shutter (1/15 to 1/7 875 s)
• Single +2.8 V power supply
• Package : 36-pin LCC* (N-LCC036-S425B)




Pinout

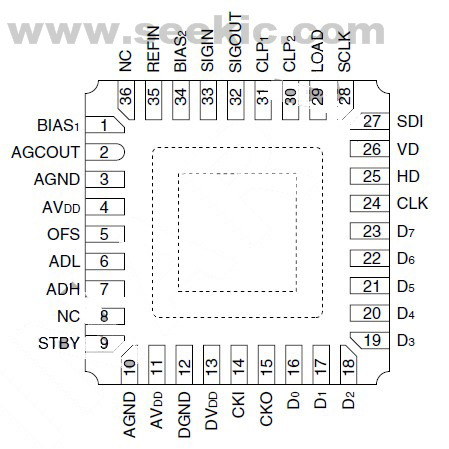

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Power supply voltage
VDD
0.3 to +4.6
V
Input signal voltage
VØ
0.3 to VDD + 0.3
V
Storage temperature
TSTG
40 to +80





Description

The LZ34B1B is a 1/4-type (4.5 mm) solid-state color image sensor that consists of PN photodiodes and CMOS (Complementary Metal Oxide Semiconductor) devices. The sensor further includes a timing generator (TG), a correlated double sampling (CDS) circuit, an auto gain control (AGC) circuit and an analog-to-digital converter (ADC) circuit. With approximately 350 000 pixels (703 horizontal x 499 vertical), the sensor provides a stable digital color image with extremely low power consumption.
