Features:

 ·Number of pixels : 362 (H) X 582 (V)
    Pixel pitch : 13.6 Mm (H) x 6.3 Km (V)
    Number of optical black pixels  : Horizontal; front 2 and rear 20
 ·Low fixed pattern noise and lag
 ·No sticking and no image distortion
 ·Blooming suppression structure
 ·Built-in output amplifier
 ·Variable electronic shutter (1/50 to 1/10 000 s)
 ·Compatible with CCIR standard
 ·Package : 16-pin SDIPICERDIP](WDIPO1 6-N-0500B)


Pinout

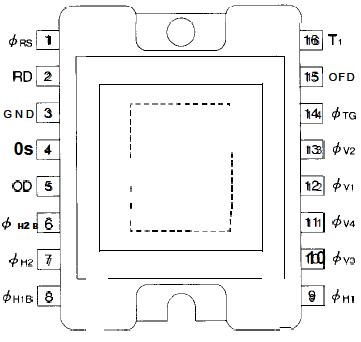

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Output transistor drain voltage
VOD
0 to +15
V
Reset transistor drain voltage
VRD

0 to +15
V
Test terminal, TI
VT1
0 to +15
V
Reset gate clock voltage
VRS
0.3 to + 1 5
V
Vertical shift register clock voltage
VV
0.3 to + 1 5
V
Horizontal shift register clock voltage

VH
0.3 to + 1 5
V
Transfer gate clock voltage
VTG
0.3 to + 1 5
V
Overflow drain voltage
VOFD
O to + 2 7
V
Storage temperature
Tstg
-40 to +85
Operatina ambient temperature
Topr
-20 to +70





Description

LZ2346 is 1 /3-type (6.0 mm) solid-state image sensor that consists of PN phote-diodes and CCDS (charge-coupled devices) driven by only positive voltages. Having approximately 220000 pixels (horizontal 384 X vertical 582), the sensor provides a stable B/W image.
