Features:

` Number of pixels : 362 (H) X 492 (V)
    Pixel pitch : 13.6 m (H) X 7.5 m (V)
    Number of optical black pixels : Horizontal; front 2 and rear 20
` Low fixed pattern noise and lag
` No sticking and no image distortion
` Blooming suppression structure
` Built-in output amplifier
` Variable electronic shutter (1 /60 to 1/1 O 000 S)
` Package : 16-pin SDIPICERDIP](WDIPO1 6-N-0500B)


Pinout

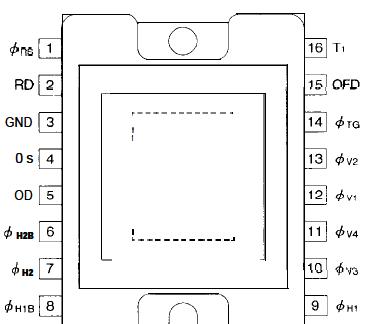

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Output transistor drain voltage
VOD
0 to +15
V
Reset transistor drain voltage
VRD

0 to +15
V
Test terminal, TI
VT1
0 to +15
V
Reset gate clock voltage
VRS
0.3 to + 1 5
V
Vertical shift register clock voltage
VV
0.3 to + 1 5
V
Horizontal shift register clock voltage

VH
0.3 to + 1 5
V
Transfer gate clock voltage
VTG
0.3 to + 1 5
V
Overflow drain voltage
VOFD
O to + 2 7
V
Storage temperature
Tstg
-40 to +85
Operatina ambient temperature
Topr
-20 to +70





Description

LZ2336 is a 1 /3-type (6.0 mm) solid-state image sensor that consists of PN phote-diodes and CCDS (charge-coupled devices) driven by only positive voltages. Having approximately 190000 pixels (horizontal 384 X vertical 492), the sensor provides a stable B/W image.
