LY E676

Features: • P-LCC-4 package• color of package: white• for use as optical indicator• for backlighting, optical coupling into light pipes and lenses• suitable for all SMT assembly methods• available taped on reel (8 mm tape)• JEDEC Level 3• IR reflow s...

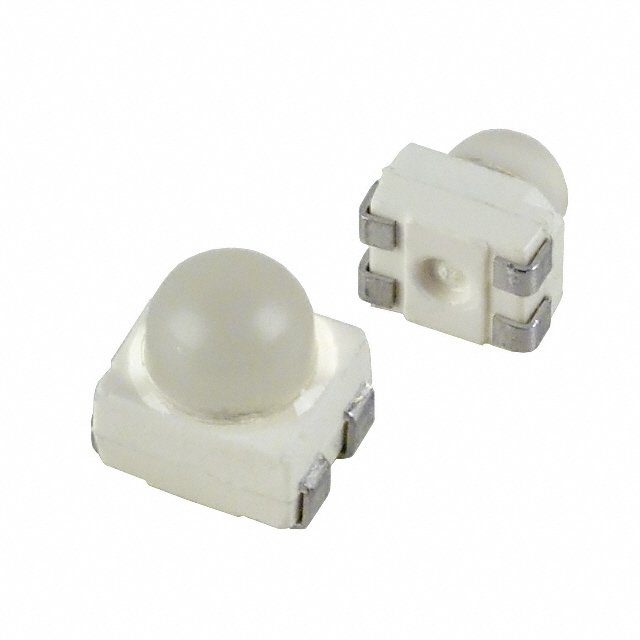

product image

LY E676 Picture
See larger image
SeekIC No. : 004403690 Detail

LY E676: Features: • P-LCC-4 package• color of package: white• for use as optical indicator• for backlighting, optical coupling into light pipes and lenses• suitable for all SMT...

LY E676 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LY E676
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• P-LCC-4 package
• color of package: white
• for use as optical indicator
• for backlighting, optical coupling into light pipes and lenses
• suitable for all SMT assembly methods
• available taped on reel (8 mm tape)
• JEDEC Level 3
• IR reflow soldering only


Specifications

Bezeichnung
Parameter
 Symbol
Symbol
Werte
Values
 Einheit
Unit
Betriebstemperatur
Operating temperature range		 Top
40 ... + 100
Lagertemperatur
Storage temperature range		 Tstg
40 ... + 100
Sperrschichttemperatur
Junction temperature		 Tj
+120
Durchlaßstrom
Forward current		 IF
50
 mA
Sperrspanung1)
Reverse voltage1)		 VR
3
 V
Verlustleistung
Power dissipation
TA 25 		Ptot
130
 mW
Wärmewiderstand
Thermal resistance
Sperrschicht / Umgebung
Junction / air
Montage auf PC-board*) (Padgröße 12 mm2)
mounted on PC board*) (pad size  12 mm2)
 Rth JA
290
 K/W

1) Belastung in Sperrichtung sollte vermieden werden.
1) Reverse biasing should be avoided.
*) PC-board: FR4
