LXT972A

Features: ` 3.3V Operation.` Low power consumption (300 mW typical).` 10BASE-T and 100BASE-TX using a single RJ-45 connection.` Supports auto-negotiation and parallel detection.` MII interface with extended register capability.` Robust baseline wander correction performance.` Standard CSMA/CD or f...

product image

LXT972A Picture
See larger image
SeekIC No. : 004403664 Detail

LXT972A: Features: ` 3.3V Operation.` Low power consumption (300 mW typical).` 10BASE-T and 100BASE-TX using a single RJ-45 connection.` Supports auto-negotiation and parallel detection.` MII interface with ...

LXT972A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LXT972A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 3.3V Operation.
` Low power consumption (300 mW typical).
` 10BASE-T and 100BASE-TX using a single RJ-45 connection.
` Supports auto-negotiation and parallel detection.
` MII interface with extended register capability.
` Robust baseline wander correction performance.
` Standard CSMA/CD or full-duplex operation.
` Configurable via MDIO serial port or hardware control pins.
` Integrated, programmable LED drivers.
` 64-pin Low-profile Quad Flat Package (LQFP). -LXT972ALC - Commercial (0 to 70ambient).


Application

 · Combination 10BASE-T/100BASE-TX Network Interface Cards (NICs)
 · 10/100 PCMCIA Cards
 · Cable Modems and Set-Top Boxes


Pinout

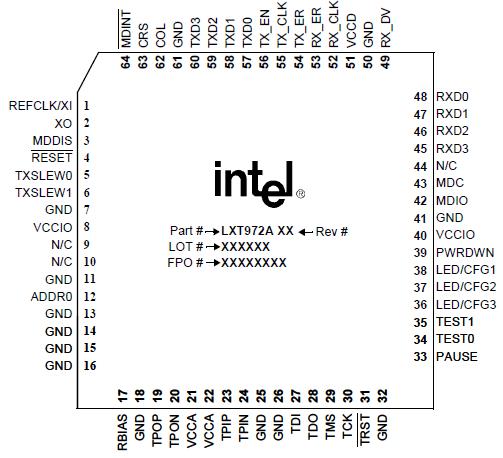

Connection Diagram


Specifications

Parameter
Sym
Min
Max
Units
Supply voltage
VCC
-0.3
4.0
V
Operating temperature
TOPA
0
+70
Storage temperature
TST
65
+150
Caution Exceeding these values may cause permanent damage.
Functional operation under these conditions is not implied.
Exposure to maximum rating conditions for extended periods may affect device reliability.



Description

The LXT972A is an IEEE compliant Fast Ethernet PHY Transceiver that directly supports both 100BASE-TX and 10BASE-T applications. It provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access  ontrollers (MACs).

This document also supports the LXT972A.

The LXT972A supports full-duplex operation at 10Mbps and 100Mbps. Its operating condition can be set using auto-negotiation, parallel detection, or manual control.

The LXT972A is fabricated with an advanced CMOS process and requires only a single 3.3V power supply.
