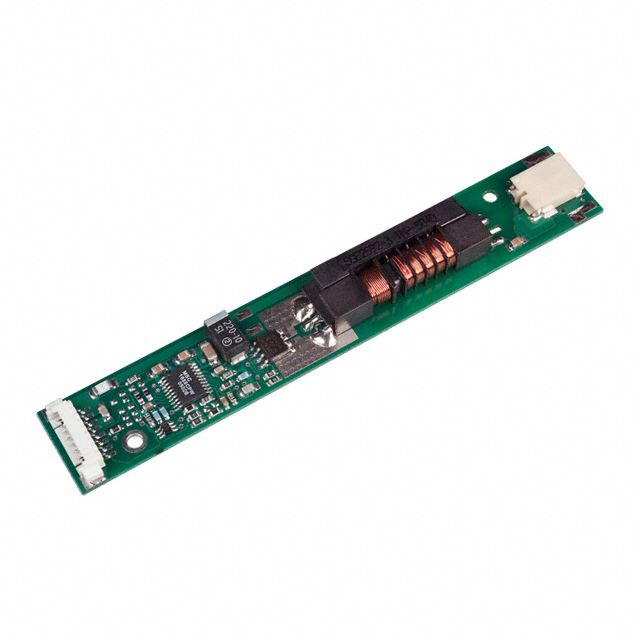

LXM1617-05-62

Type: Inverters for CCFL and UV Lamps
Voltage - Input: 5.0V
Mounting Type: Chassis Mount
Output: 1800V
Manufacturer: Microsemi Analog Mixed Signal Group
Size / Dimension: 3.94" L x 0.63" W x 0.30" H (100mm x 16mm x 7.5mm)
Series: LXM1617-05-6x


Features:

Externally Programmable Maximum Output Current
Easy to Use Brightness Control
Output Short-Circuit Protection and Automatic Strike-Voltage
RangeMAX Wide Range Dimming
Regulation and Timeout Rated From 20 to 70° C
UL60950 L175910


Application

Notebook And Sub-Notebook Computers
Portable Instrumentation
Desktop Displays
Industrial Display Controls


Specifications

Input Signal Voltage (V_IN1).......................................................-0.3V to 6.5V
Input Power .............................................................................8.25W
Output Voltage, no load ...........................................................Internally Limited to 1800V_RMS
Output Current ........................................................................10mARMS (Internally Limited)
Output Power ...........................................................................6.0W
Input Signal Voltage (SLEEP Input)...........................................-0.3V to 5.5V
Input Signal Voltage (BRITE) .....................................................0.3V to 5.5V
Ambient Operating Temperature, zero airflow...........................-20°C to 70°C
Storage Temperature Range.....................................................-40°C to 85°C


Description

The LXM1617-05-6x is a Single Output 6W Direct Drive™ CCFL (Cold Cathode Fluorescent Lamp) Inverter Module specifically designed for driving LCD backlight lamps. It is ideal for driving typical 12.1" to 15" TFT panels.

LXM1617 modules provide the designer with a vastly superior display brightness range. This brightness range is achievable with virtually any LCD display.

The LXM1617-05-62 maximum output current is externally programmable over a range of 5 to 8mA in 1mA steps to allow the inverter to properly match to a wide array of LCD panel lamp current specifications. The modules include a dimming input that permits brightness control from a dc voltage source, a PWM signal or an external potentiometer.RangeMAX Digital Dimming Technique provides flicker-free brightness control in any wide range typically (50:1+) dimming application.

The resultant "burst drive" that energizes the lamp was designed specifically to ensure that no premature lamp degradation occurs, while allowing significant power savings at lower dim levels.The modules convert DC voltage from the system battery or AC adapter directly to high frequency, high-voltage waves required to ignite and operate CCFL lamps. A 12V input inverter is also available (LXM1617-05-62).

The modules LXM1617-05-62 design is based on Microsemi's new LX1689 backlight controller, which provides a number ofm n cost and performance advantages due to the controller's high level of integration.Other benefits of this new topology are stable fixed-frequency operation, secondary-side strike-voltage regulation and both open/shorted lamp protection with fault timeout.
