LXM1611-01

MOD CCFL INVERTER DIGITAL DIM

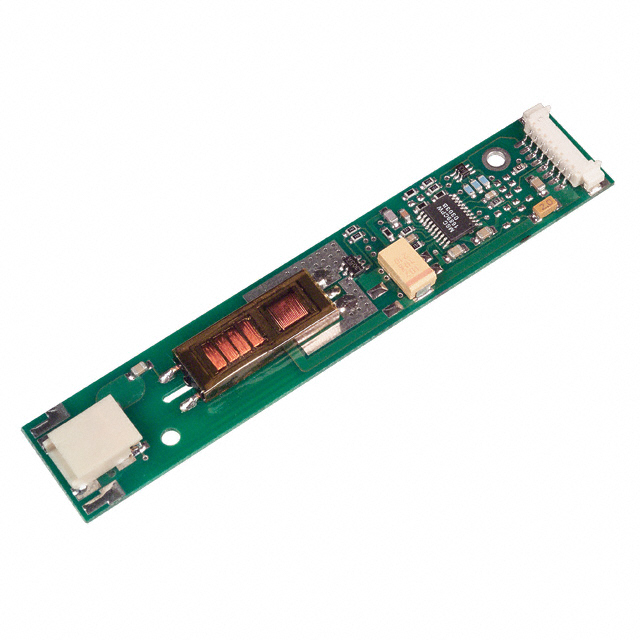

product image

LXM1611-01 Picture
SeekIC No. : 003612356 Detail

LXM1611-01: MOD CCFL INVERTER DIGITAL DIM

floor Price/Ceiling Price

Part Number:
LXM1611-01
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Microsemi Analog Mixed Signal Group
Voltage - Input: 12V Output: 1800V
Type: Inverters for CCFL and UV Lamps Size / Dimension: 3.94" L x 0.63" W x 0.29" H (100mm x 16mm x 7.3mm)
Supply Current (Max) : 0.025 mA

Description

Voltage - Input: 12V
Type: Inverters for CCFL and UV Lamps
Mounting Type: Chassis Mount
Output: 1800V
Series: -
Manufacturer: Microsemi Analog Mixed Signal Group
Size / Dimension: 3.94" L x 0.63" W x 0.29" H (100mm x 16mm x 7.3mm)


Features:

· RangeMAX Wide Range Dimming
· 8V to 18V Input Voltage Range
· 30% Smaller Than CS-ZVS Models
· Easy To Use Brightness Control
· MicroAmp SLEEP Mode
· Output Short-Circuit Protection And Automatic Strike-Voltage Regulation
· 7.3mm Max. Module Height, 16mm Module Width
· Fixed Frequency Operation



Application

 ·  Notebook And Sub-Notebook Computers
 ·  Portable Instrumentation
 ·  Desktop Displays
 ·  Low Ambient Light Conditions (i.e. Aircraft Cabins, Automobile)






Specifications

Input Supply Voltage (VIN) ............................................................... -0.3V to 18V
Output Voltage, no load .......................................Internally Limited to 1800VRMS
Output Current .....................................................10.0mARMS (Internally Limited)
Output Power .............................................................................................. 6.0W
Input Signal Voltage (BRITE Input) ................................................... 0.3V to 6.5V
Input Signal Voltage (SLEEP, VSYNC(-), VSYNC(+) Inputs) .............. .....-0.3V to VIN
Ambient Operating Temperature ......................................................... 0 to 70
Storage Temperature Range ............................................................ -40 to 85
Note 1. Exceeding these ratings could cause damage to the device. All voltages are with respect to Ground. Currents are positive into, negative out of the specified terminal.




Description

RangeMAX Wide Range Dimming, Single Output Inverter. The LXM1611 series of Direct DriveTM CCFL (Cold Cathode Fluorescent Lamp) Inverter Modules are specifically designed for driving LCD backlight lamps.

Similar to the LXM1610, the LXM1611 excels in applications where critical parameters include very wide range dimmability, high efficiency and reliable fail-safe design in a small form factor.

Unlike the LXM1610 or any traditional dimming CCFL inverters, the LXM1611 provides the designer a vastly superior display brightness range. 100:1+ brightness range is achievable with virtually any LCD display. Our wide range dimming provides exceptional display readability at less than 1% of full brightness, allowing both power savings and low ambient light operating capability (i.e. "night readable").

The LXM1611 is recommended for use in panels with low-voltage insulation on the lamp return wire.

RangeMAX Digital Dimming Technique. Digital dimming provides flickerfree brightness control in any wide-range dimming application. Dimming ratios greater than 100:1 can be achieved. Incorporation of a video synchronization feature allows wide ratio dimming without the display disturbances and interference seen with competitive products.LXM1611-01 are equipped with a dimming input that permits brightness control from an external potentiometer or DC voltage source. The resultant "burst drive" that energizes the lamp was designed specifically to ensure that no premature lamp degradation occurs. (See"How RangeMAX Works" Section)

Wide Input Voltage Range. The modules LXM1611-01 convert unregulated DC voltage from the system battery or AC adapter directly to highfrequency, high-voltage waves required to ignite and operate CCFL lamps.

Direct Drive Technology. The module design is based on a new Direct Drive topology, which provides a number of cost and performance advantages. The LXM1611-01 series Direct Drive inverters eliminate the classic resonant inductor and capacitors, thus reducing cost and allowing a 30% reduction in module size.Additional Features. Other benefits of this new topology are fixed-frequency operation and secondary-side strike-voltage regulation.

Strike-voltage regulation minimizes corona discharge in the output transformer and related circuitry, providing longer life and higher reliability. All LXM1611 modules feature both open and shorted lamp protection.

The LXM1611 is fully customizable (electronically and mechanically) to specific customer requirements.
