LW3123-0100-A, US $ 8.27-9.14 , NKK Switches, LW3123-0100-A DataSheet download, circuit diagram from SeekIC.com

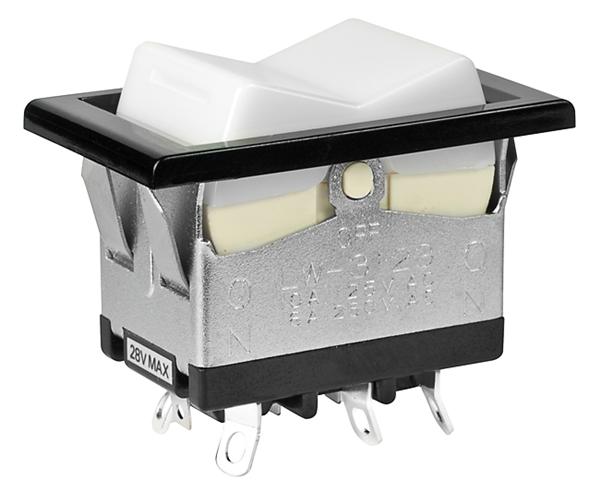

See larger image

SeekIC No. : 002626820 Detail

LW3123-0100-A: Rocker Switches & Paddle Switches 10A DPDT ON-OFF-ON

LW3123-0100-A Data Sheet

US $ 8.27~9.14 / Piece | Get Latest Price

Part Number:: LW3123-0100-A
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$9.14
$8.84
$8.55
$8.27

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LW3122 evaluate
US $6.46 - 8.48 / Piece

Rocker Switches & Paddle Switches DPDT ON-ON ROCKER
LW3122/U evaluate
US $11.71 - 12.82 / Piece

Rocker Switches & Paddle Switches DPDT ON-NONE-ON BODY ONLY W/UL MARK
LW3122/U-0100-A evaluate
US $9.02 - 9.54 / Piece

Rocker Switches & Paddle Switches SPDT ON-ON WHITE CAP BLACK BEZEL UL MARK

Product Details

Quick Details

Contact Form :	DPDT	Switch Function :	ON - OFF - ON
Current Rating :	10 A	Voltage Rating AC :	250 V
Voltage Rating DC :	30 V	Termination Style :	Quick Connect
Actuator :	Rocker	Color :	Black
Mounting Style :	Panel	Contact Plating :	Silver
Illumination :	Not Illuminated

Description

Power Rating :
Terminal Seal :
Illumination Color :
Actuator : Rocker
Mounting Style : Panel
Contact Form : DPDT
Termination Style : Quick Connect
Contact Plating : Silver
Illumination : Not Illuminated
Voltage Rating AC : 250 V
Color : Black
Current Rating : 10 A
Switch Function : ON - OFF - ON
Voltage Rating DC : 30 V

Parameters:

Technical/Catalog Information	LW3123-0100-A
Vendor	NKK Switches of America Inc
Category	Switches
Mounting Type	Panel Mount, Snap-In
Circuit	DPDT
Switch Function	On-Off-On
Contact Rating @ Voltage	10A @ 125VAC
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Termination Style	Screw Terminal
Panel Cutout Dimensions	32.00mm x 19.80mm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LW3123 0100 A LW31230100A
