LUCW3000CCN

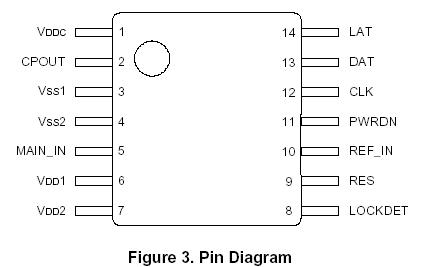

The LUCW3000CCN is a high-performance UHF RF PLL synthesizer, designed for use in digital wireless communication
applications. Particular of LUCW3000CCN emphasis in the design has been placed on dual-band applications, with near-seamless
switching between operational bands without the need for external loop-filter circuitry other than that required for
single band applications. In combination with a suitable reference crystal, UHF VCO, and associated loop-filter
components, the W3000 offers a very low-noise oscillator solution.

The reference signal of LUCW3000CCN is divided by a programmable 11-bit counter to provide a wide range of comparison
frequencies, allowing compliance with the various standards. The reference input is rising-edge triggered, and we
recommend that an inverting buffer be used when the W3000 is interfaced to a commercial TCXO.
The MAIN_IN signal of LUCW3000CCN normally associated with the UHF VCO is fed into a dual modulus prescaler (64/65) and is
then divided by the 11-bit main counter to be compared to the output of the reference counter in a digital phase
detector.

The LUCW3000CCN is implemented with programmable charge-pump currents to allow fast switching between bands for
dual-band applications, without changing the loop filter. The charge pump can be programmed internally, or
externally with a resistor (recommended). Charge pump outputs can be disabled, thereby allowing open-loop
VCO modulation schemes.

With synchronous reloading, the counter LUCW3000CCN reloads a new programmed value when the counter reaches zero. With
forced counter reloading, the reloading occurs when the programmed word is latched in. These techniques can
improve lock time when performing a dual-band hop or in start-up conditions.
The LUCW3000CCN uses a standard 3-wire programming bus (data, enable, clock) that operates up to 10 MHz. This
serial interface is via a 24-bit word that incorporates both register addressing and device addressing allowing two
chips to share the bus.
